RedRunner Designs

(Type 4) Universal Adjustable Quick Disconnect Sway Bar Links

(Type 4) Universal Adjustable Quick Disconnect Sway Bar Links

Regular price $195.00 USD
Regular price Sale price $195.00 USD
Sale Out of stock
Shipping calculated at checkout.
Length
Quick Disconnect Pin Size

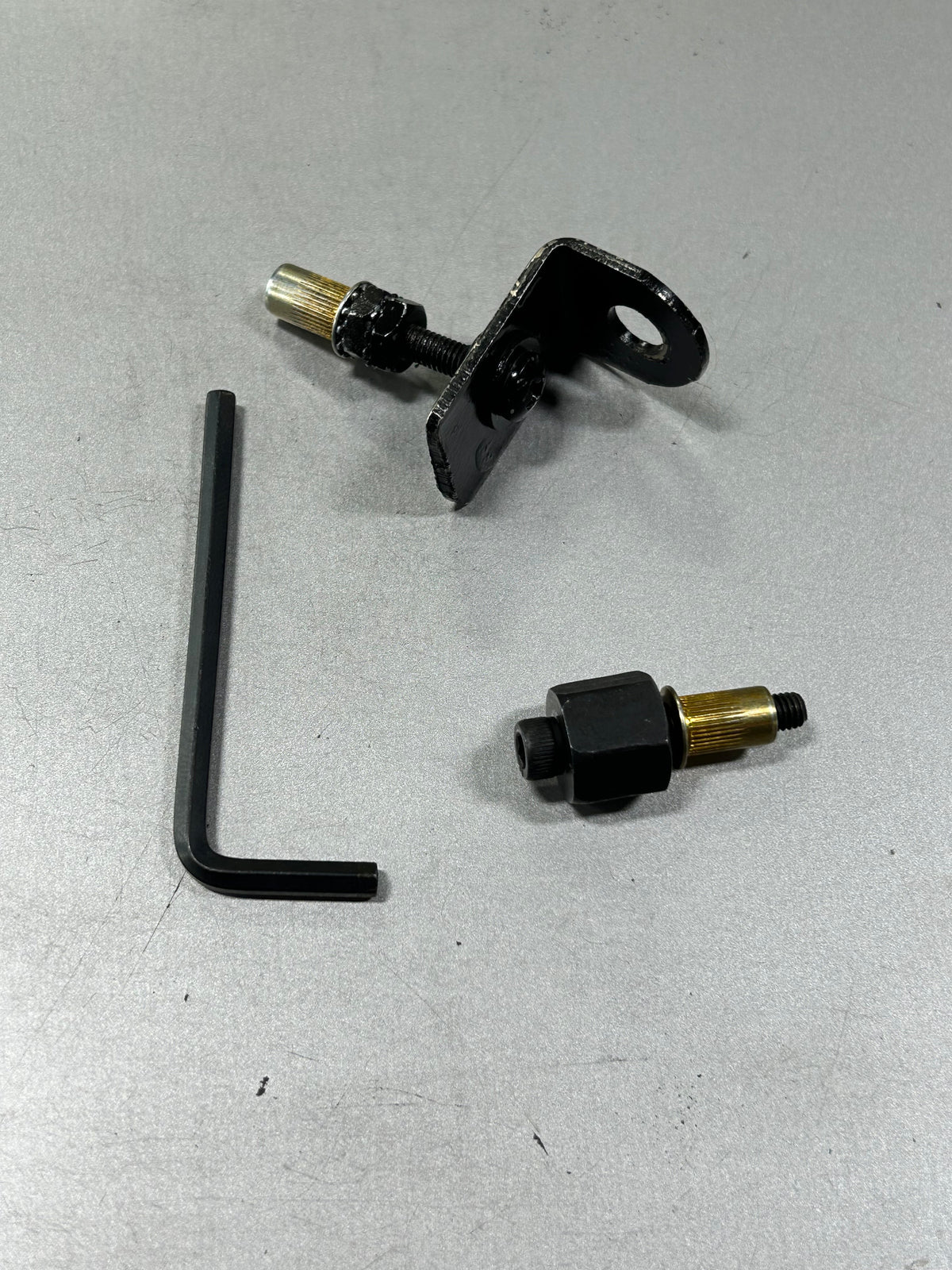

Securement Bracket
Quantity
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

This RedRunner Designs sway bar part is listed with its fitment details below. Sway bar parts are one of the most noticeable handling upgrades for the money, especially on lowered or lifted cars.

Key details

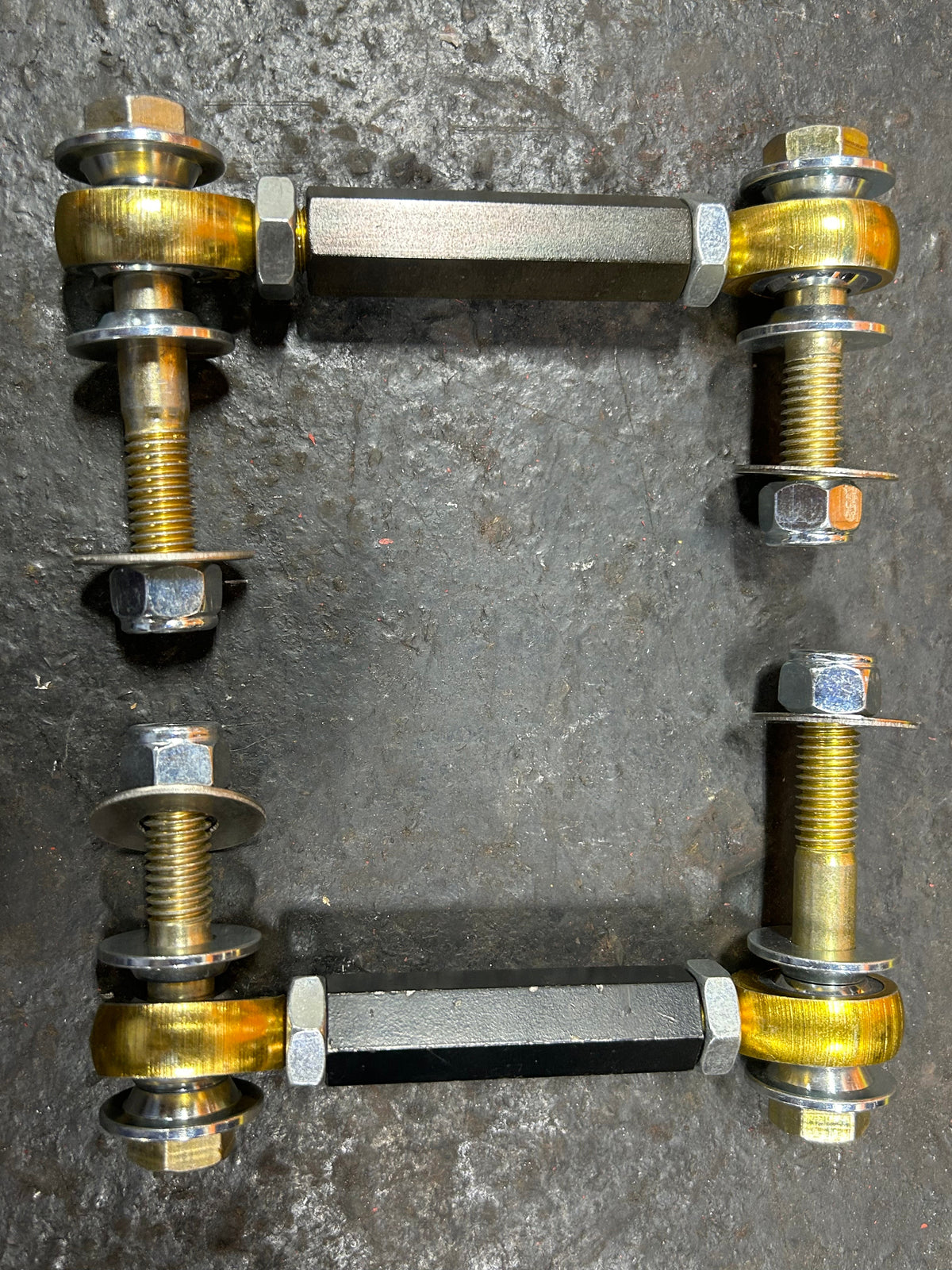

  • RedRunner Designs Type 4 Quick Disconnect Sway Bar Links use an adjustable double heim design that can be built in a wide range of lengths and configured with either 7/16 inch or 12 mm quick disconnect pins.
  • Two Quick Disconnect Pin Sizes – Choose 7/16 inch or 12 mm to match your mounting points.

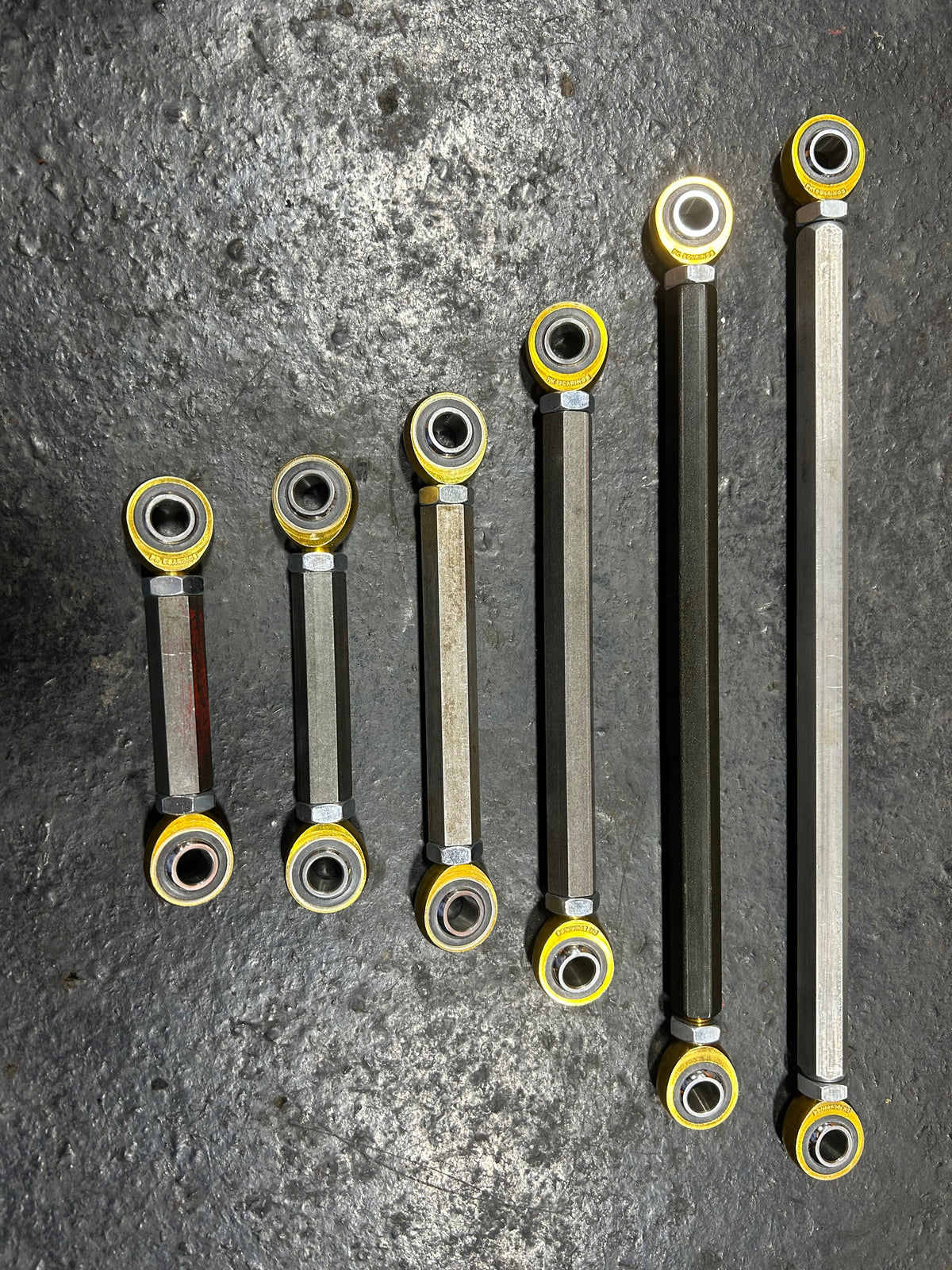

  • 4.5–5.75 inches center to center
  • 5–6.25 inches center to center
  • 6.5–7.75 inches center to center
  • 8.5–9.75 inches center to center
  • 12–13.25 inches center to center
  • 14–15.25 inches center to center
  • 7/16 Inch Pin — Gold Bolt
  • 15.25 mm usable thread
  • Approximately 0.60 inch usable thread
  • 12 mm Pin
  • 38 mm usable thread
  • Approximately 1.5 inches usable thread

Notes

  • Better suited for thicker mounting points, brackets, or stacked hardware
  • Common applications include: Jeep JK
  • If you do not see your vehicle listed, send us your year, make, model, current sway bar link mounting length, mounting point thickness, and photos of both mounting points.
  • Sold as a PAIR.

Tip: On lowered or lifted cars, adjustable end links keep the bar at the right angle.

View full details

Before you order: fitment and setup

Sway bars control body roll in corners. Changing the bar or its links changes how flat the car stays and how it balances front to rear.

Fitment notes

  • Specs, lead time and warranty come from RedRunner Designs and can change. The details above this guide are the latest we have.

Not sure it fits? Send us your year, make, model, trim and drivetrain and we'll check with the supplier before you order.

Ask about fitment

Plan the whole job

  • Adjustable end links if the car is lowered or lifted, so the bar sits at the right angle. See sway bars and end links.
  • Fresh mount bushings for the bar itself.

More for your car: Sway Bars & End Links · All Sway Bars & End Links

Questions

Will this fit my car?
Check the product title and details for the vehicles it is listed for. If you are not sure, contact us with your year, make, model and trim and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing this?
If the part changes or affects suspension geometry, yes. It is a good idea after any arm, link or bushing change.
Can I install it myself?
Many bolt-on parts can be installed at home with the right tools and a safe way to support the car. Pressed bushings and anything you are unsure about are best left to a shop.
Where do specs and warranty details come from?
From RedRunner Designs. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
