Bilstein 4600 shocks: the stock-height upgrade

The Bilstein 4600 (sold as the B6 4600) is Bilstein's direct-fit upgrade over factory shocks for light trucks and SUVs that stay at stock height. Bilstein describes it as a monotube shock with a velocity-sensitive digressive piston, tuned for each vehicle. Its catalog lists a 46mm piston, a 2.0 inch body and a yellow painted finish. "B6" is Bilstein's label for stock-height upgrades, while "B8" (the 5100) marks parts for leveled or lifted trucks.

We list 143 parts on this page. Most single 4600 shocks cost $92 to $214.99 each, and every listing is one shock. A full truck needs two fronts and two rears, which are different part numbers.

Bilstein 4600 vs 5100: which one do you need?

This is the most common question about the 4600, and Bilstein answers it directly. The B6 4600 keeps factory ride height. The B8 5100 ride height adjustable strut lifts the front, and standard 5100s are longer for trucks that are already leveled or lifted. Bilstein also calls the idea that the 5100 is "more heavy duty" a myth: both share the same internals, and the 5100's extra length and zinc plating are the real differences.

If your truck sits at factory height and you plan to keep it there, buy the 4600. If you want to level the front, or the truck already has a lift, go to Bilstein 5100 shocks. For lifted trucks driven hard off road, Bilstein points to the reservoir Bilstein 5160.

Bilstein 4600 fitment by truck

Built from the listings on this page. Years and positions are checked against Bilstein's catalog, and prices are per shock.

We also list 4600s for older trucks and SUVs, including 1999-2006 GM 1500s, 2002-09 Trailblazer and Envoy, 2007-13 Expedition and Navigator, Dakota and Durango, Ford Ranger, Hummer H2 and H3, Land Cruiser and early Toyota pickups. Many titles show only the part number, so search your part number on this page. Out of stock right now: the 2015-20 F-150 4WD front and 2015+ rear, the 2016-23 Tacoma front, the 2022+ Tundra rear and the 2007-21 Tundra rear.

How to choose the right Bilstein 4600

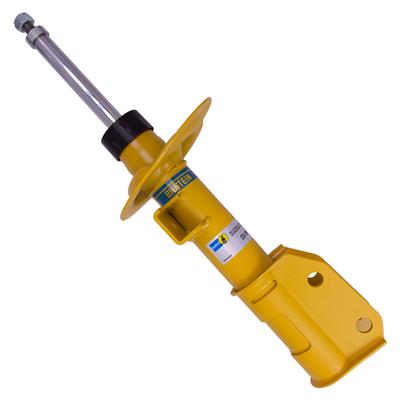

• Stock height only. The 4600 is built for factory ride height. On a 4600 front strut, Bilstein's install sheets show only the stock circlip position.
• Keep the factory springs. Bilstein says 4600 and 5100 struts are designed around OE coil springs. Aftermarket or lift springs can push the strut past its range.
• Match drivetrain and trim. F-150 fronts split by RWD and 4WD, and many GM and Toyota parts exclude air or electronic suspension. Check the title and part number.
• Rears and fronts are separate. Order two of each for a full set.

Install and cost

A rear 4600 shock is usually two bolts per end with the axle supported. A front strut body means removing the strut and moving the factory coil with a spring compressor, and Bilstein's instructions say installation should be done by a professional suspension technician, so many owners have a shop do the fronts. In parts, a full set for a 2019+ Silverado 1500 4WD is $541.50 (two fronts at $128.76, two rears at $141.99), and a 2022+ Frontier set is $467.98. If you are replacing worn shocks on a truck with struts, check the top mounts too: see strut mounts.

What else you'll need

• Steering stabilizer on solid axle trucks: steering stabilizers.
• Bushings and end links if the old ones are worn: sway bar end links.
• Other brands for comparison: all Bilstein parts, KYB shocks and the full shocks and struts range.

Popular picks

• Bilstein 14-18 GM 1500 B6 4600 front 24-337113, $123. Also fits 2015-20 Tahoe, Suburban and Yukon.
• Bilstein 2019+ Silverado 1500 4WD B6 4600 front 24-351430, $128.76.
• Bilstein 15-20 F-150 B6 4600 front 24-337137, $140.
• Bilstein 2022+ Tundra B6 4600 front 24-329156, $140.
• Bilstein 2022+ Frontier B6 4600 front 24-335034, $92.

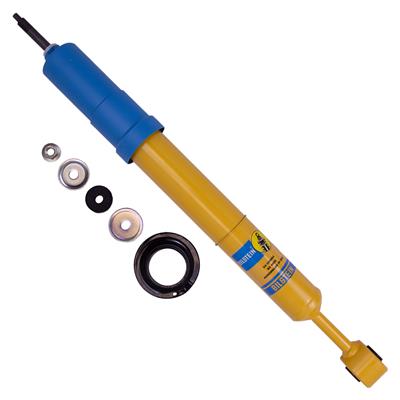

• Bilstein B6 4600 24-329064, $147.99. The front for the 2010-24 4Runner and FJ Cruiser.
