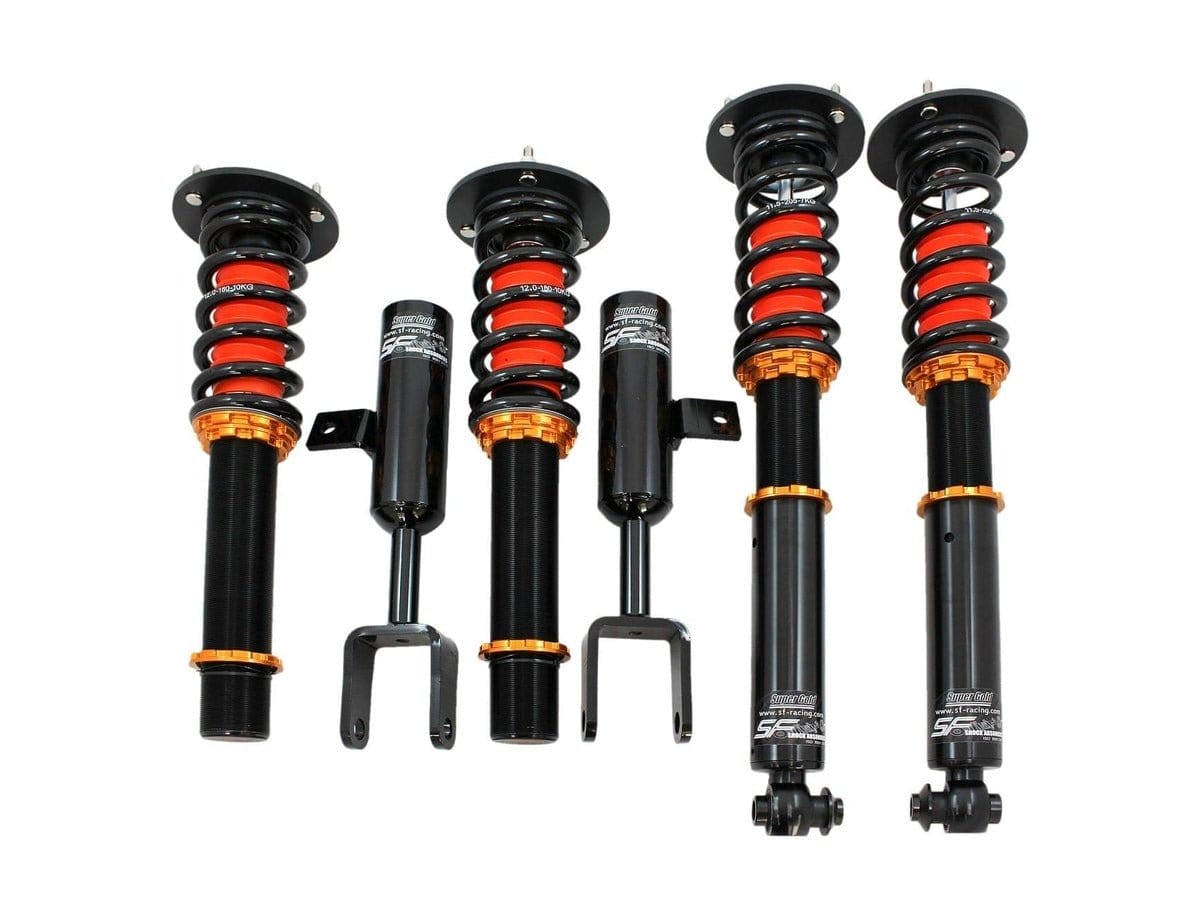

SF Racing Track Coilovers for 2016+ Cadillac CT6 AWD

SF Racing Track Coilovers for 2016+ Cadillac CT6 AWD

$1,095.00 USD
$1,200.00 USD $1,095.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: 2016+ Cadillac CT6 AWDAWDFitment notes & questions

SF Racing's Track Coilovers for the 2016+ Cadillac CT6 use firmer, track-focused valving for drivers who want sharper response and more control, while staying usable on the street. This version is listed for AWD models.

How this kit is set up for the 2016+ Cadillac CT6

Both ends use a true coilover layout, with the spring sitting on the damper body at every corner. Damper bodies are 52mm front and 50mm rear. It comes with 16 kg/mm (about 896 lb/in) springs up front and 10 kg/mm (about 560 lb/in) at the rear. Damping is 1-way: a single knob with 32 settings changes rebound and compression together, which keeps tuning quick. The front top mounts are aluminum with rubber bushings. At the rear, the mounts are aluminum with rubber bushings.

Highlights

  • Monotube damper design for better heat control and fewer leaks
  • 32 damping settings on a single knob that sets rebound and compression together
  • SAE9254 cold-wound springs
  • NOK seals and Italian IP damping oil (20W)
  • Built-in dust boots and bump stops
  • Bolt-on install with no modifications, unless the notes below say otherwise
  • Adjustable ride height, roughly 1 to 2.5 inches below factory per SF Racing, while keeping suspension travel
  • Separate lower-mount (length) adjustment, so height changes don't preload the spring
  • Anodized T6-6061 aluminum top mounts, spring perches and collars for corrosion resistance
  • Zinc-plated shock bodies for rust protection

Who it suits

Ideal if body control and response matter more to you than the softest possible ride.

Specifications

Part number SF-CD05-02-TR
Vehicle 2016+ Cadillac CT6
Drivetrain AWD
Damper model Track Series
Damping 1-Way: Rebound and Compression
Damper size (front / rear) 52mm diameter / 50mm diameter
Spring rate (front / rear) 16 kg/mm / 10 kg/mm
Design (front / rear) True Coilover / True Coilover
Top mounts (front) Aluminum with Rubber Bushings
Top mounts (rear) Aluminum with Rubber Bushings
View full details

Before you order: Cadillac CT6 fitment and setup

This SF Racing kit replaces the factory springs and shocks on the 2016+ Cadillac CT6 AWD with a height-adjustable coilover at each corner, so you set the ride height instead of living with a fixed drop.

Fitment notes

  • Listed for: 2016+ Cadillac CT6 AWD.
  • Model years: 2016+. Newer years can change parts mid-generation, so match the exact year.
  • Drivetrain: AWD. AWD and 4WD versions often use different suspension parts from 2WD versions of the same car.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Send us your year, make, model, trim and drivetrain and we'll check with the supplier before you order.

Ask about fitment

Plan the whole job

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels.

More for your car: Cadillac Coilovers & Suspension · All Coilovers

Questions about Cadillac CT6 coilovers

Will this fit my Cadillac CT6?
It is listed for the 2016+ Cadillac CT6 AWD. Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
