SF Racing N2 Coilovers for 2012-2016 Scion FR-S (ZN6)

SF Racing N2 Coilovers for 2012-2016 Scion FR-S (ZN6)

$1,795.00 USD
$1,900.00 USD $1,795.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: 2012-2016 Scion FR-S (ZN6)Fitment notes & questions

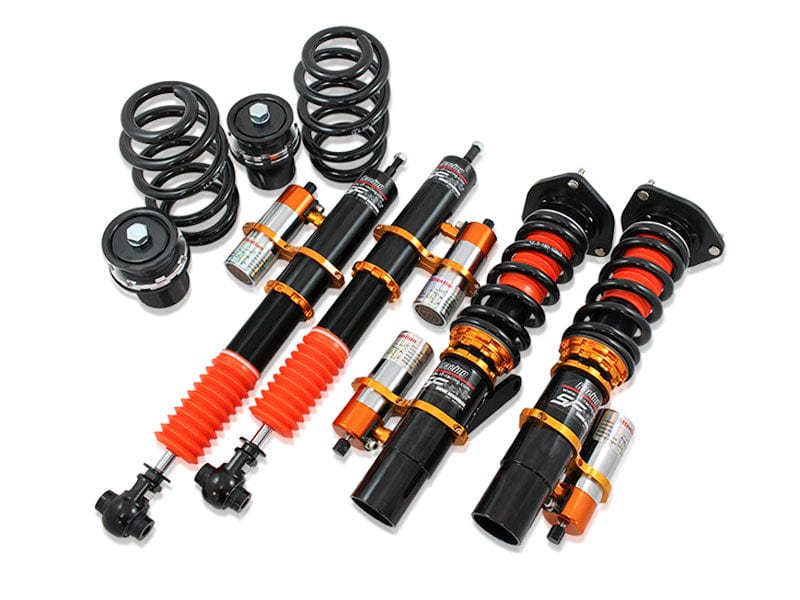

SF Racing's N2 Coilovers for the 2012-2016 Scion FR-S (ZN6) add external reservoirs and 2-way damping adjustment for drivers who want finer control over how the car rides and handles. This version is listed for RWD models.

2012-2016 Scion FR-S setup details

Front and rear are both true coilovers, which keeps ride height adjustment simple and precise at each corner. Damper bodies are 52mm front and 50mm rear. It comes with 7.2 kg/mm (about 403 lb/in) springs up front and 8.3 kg/mm (about 465 lb/in) at the rear. Rebound and compression are adjusted separately (2-way), so you can tune how the car settles over bumps independently from how it reacts to them. The front top mounts are aluminum with rubber bushings, with aluminum camber plates (pillowball bushings) available as an option. At the rear, the mounts are aluminum with rubber bushings (optional: aluminum withpillowball bushings).

Highlights

  • External-reservoir dampers for more oil capacity and consistent damping under hard use
  • 2-way damping: rebound and compression adjust separately
  • Bolt-on install with no modifications, unless the notes below say otherwise
  • Adjustable ride height, roughly 1 to 2.5 inches below factory per SF Racing, while keeping suspension travel
  • Independent lower mount adjustment keeps spring preload and damper travel where they should be when you change height
  • Anodized T6-6061 aluminum top mounts, spring perches and collars for corrosion resistance
  • Zinc-plated shock bodies for rust protection

Who it suits

Ideal for high-performance builds that have outgrown 1-way adjustable coilovers.

Specifications

Part number SF-SC03-01-N2
Vehicle 2012-2016 Scion FR-S
Chassis ZN6
Drivetrain RWD
Damper model N2 External Reservoir Coilovers
Damping 2-Way: Rebound and Compression
Damper size (front / rear) 52mm diameter / 50mm diameter
Spring rate (front / rear) 7.2 kg/mm / 8.3 kg/mm
Design (front / rear) True Coilover / True Coilover
Top mounts (front) Standard: Aluminum with Rubber Bushings / Optional: Aluminum Camber Plates (Pillowball Bushings)
Top mounts (rear) Standard: Aluminum with Rubber Bushings / Optional: Aluminum withPillowball Bushings
View full details

SF Racing coilovers for your Scion FR-S: what to know

If you want more control over stance and handling than lowering springs give you on a Scion FR-S, a coilover kit like this SF Racing set is the usual next step.

Fitment notes

  • Listed for: 2012-2016 Scion FR-S (ZN6).
  • Model years: 2012-2016. Check your car's year falls inside this range.
  • Chassis code ZN6: you can usually find it in your vehicle documents or by decoding your VIN.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Message us your car's details and we'll double-check fitment with the supplier before you buy.

Ask about fitment

Parts that usually go with it

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels. Our ride height and wheel fitment calculator shows how much drop and offset change you are planning.
  • The right spring rate. Compare the rates listed here with what our spring rate calculator suggests for your car's weight and use.

More for your car: GR86 / BRZ / FR-S Coilovers & Suspension · All Coilovers

Questions about Scion FR-S coilovers

Will this fit my Scion FR-S?
It is listed for the 2012-2016 Scion FR-S (ZN6). Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
