BMW E90 E91 E92 E81 E82 E87 E88 Front Drift Steering Angle Kit, 65 Degree Lock, Adjustable Ackermann

BMW E90 E91 E92 E81 E82 E87 E88 Front Drift Steering Angle Kit, 65 Degree Lock, Adjustable Ackermann

Regular price $2,200.79 USD
Regular price Sale price $2,200.79 USD
Sale Out of stock
Shipping calculated at checkout.
Quantity
  • Ships directly from the warehouse to you
  • Ships from an overseas warehouse, estimated delivery 3-19 days
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: BMW BMW E90Fitment notes & questions

A front drift steering angle kit for BMW E9X and E8X chassis, M and non-M. It gives 65 degrees of lock with parallel steering and adjustable Ackermann.

Fitment

  • BMW E90 (M and non-M)
  • BMW E91
  • BMW E92 (M and non-M)
  • BMW E81
  • BMW E82 (M and non-M)
  • BMW E87
  • BMW E88

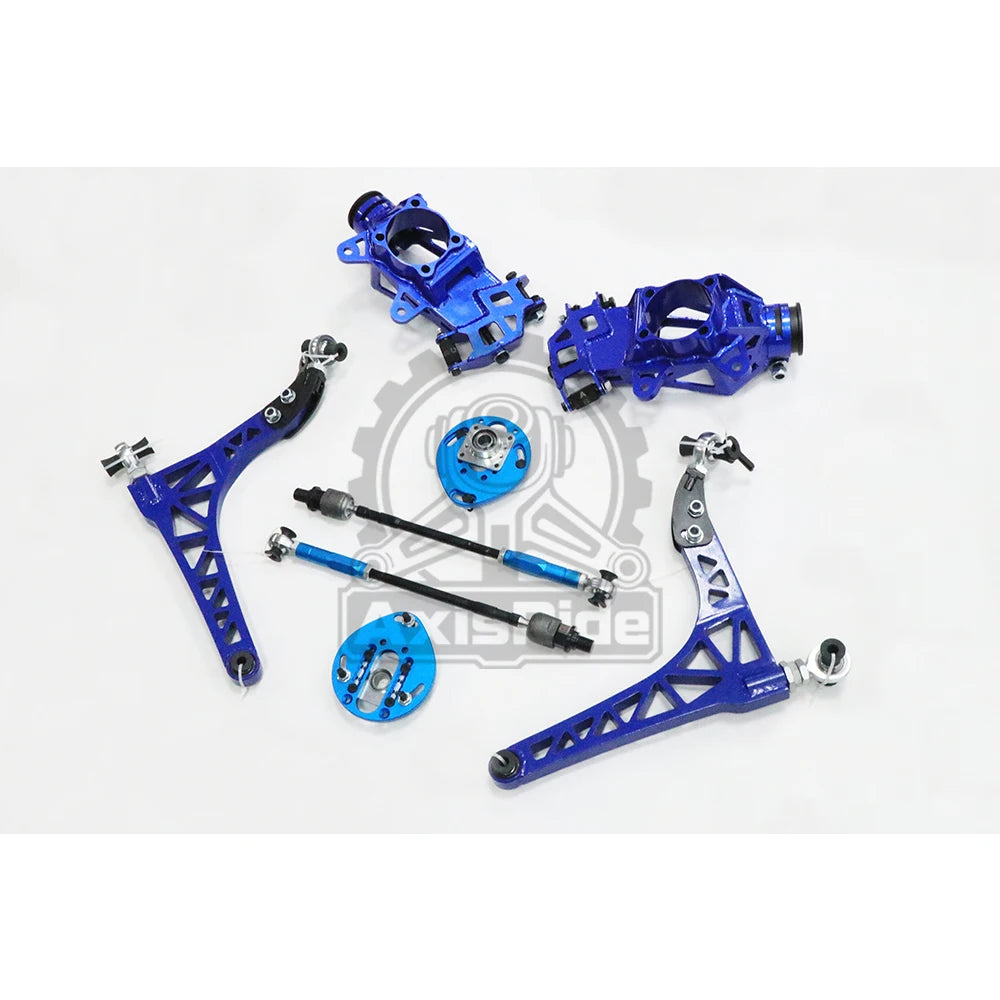

What's included

  • Adjustable coilover upper mounts

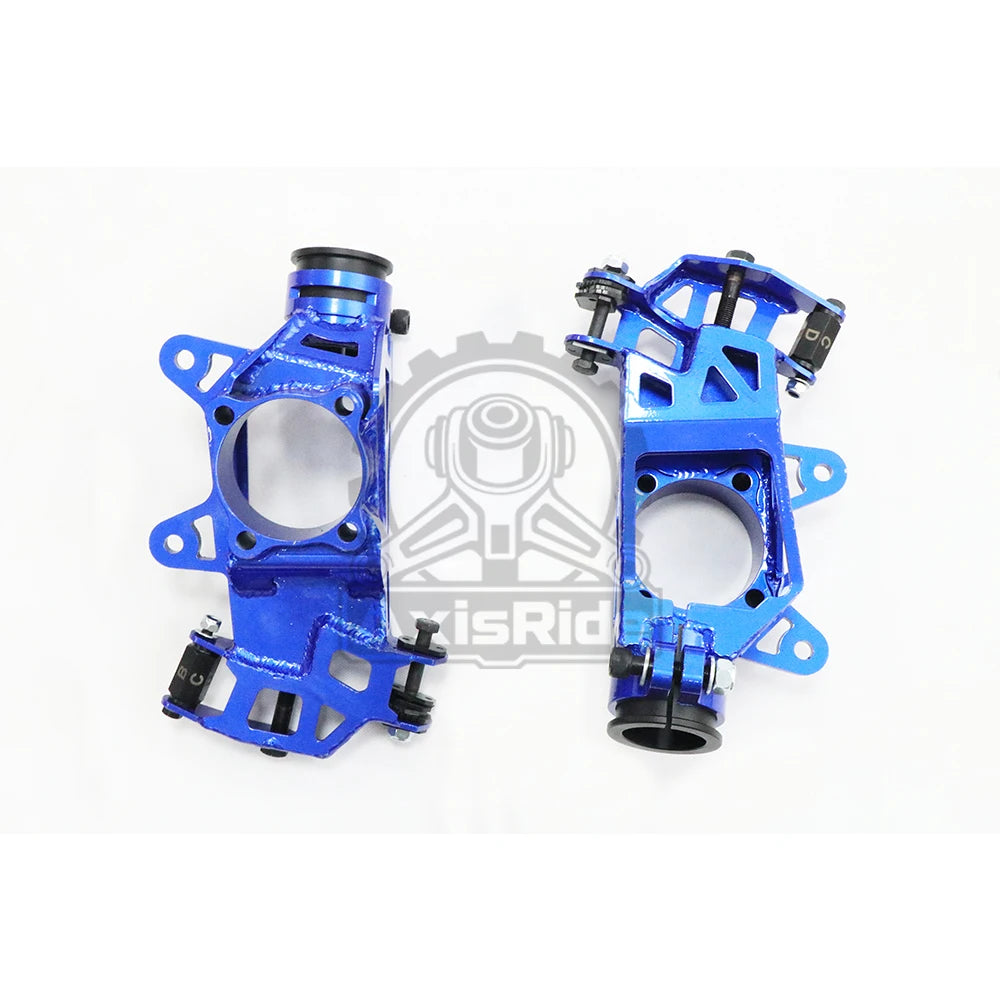

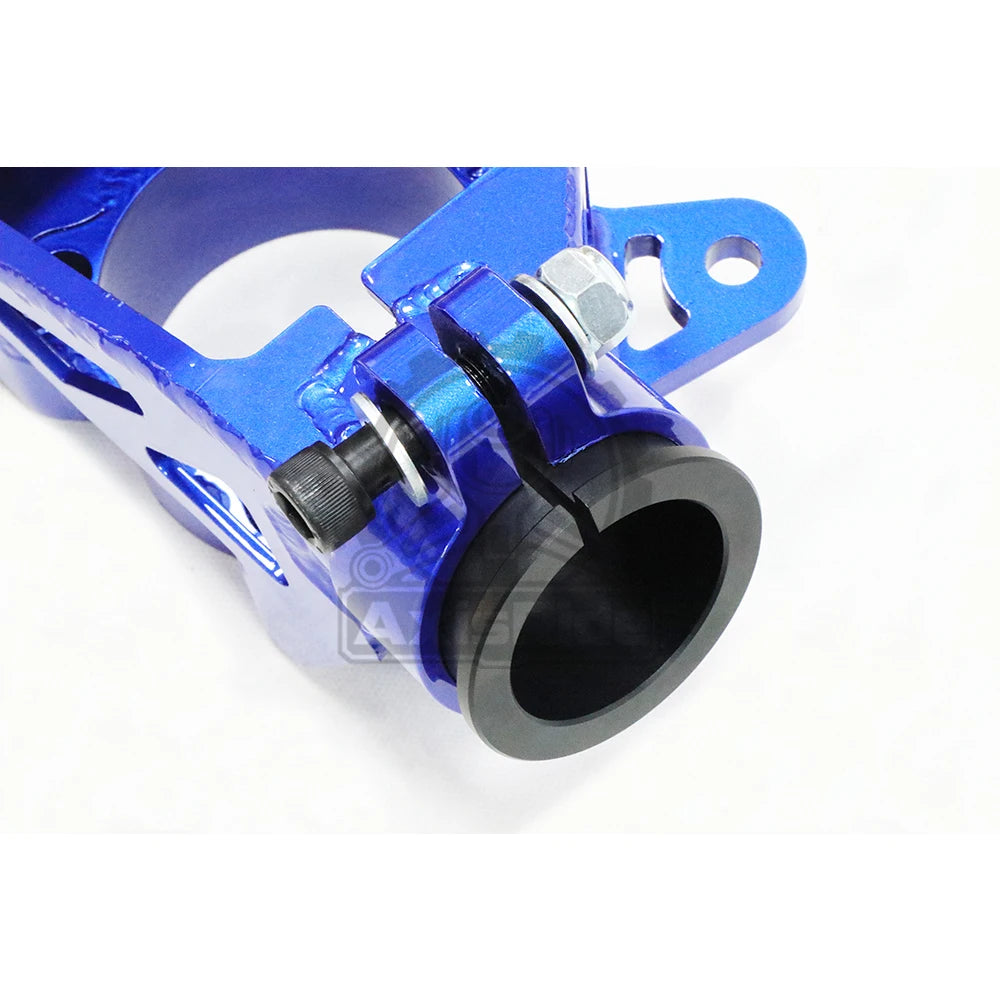

  • Knuckles with hardware

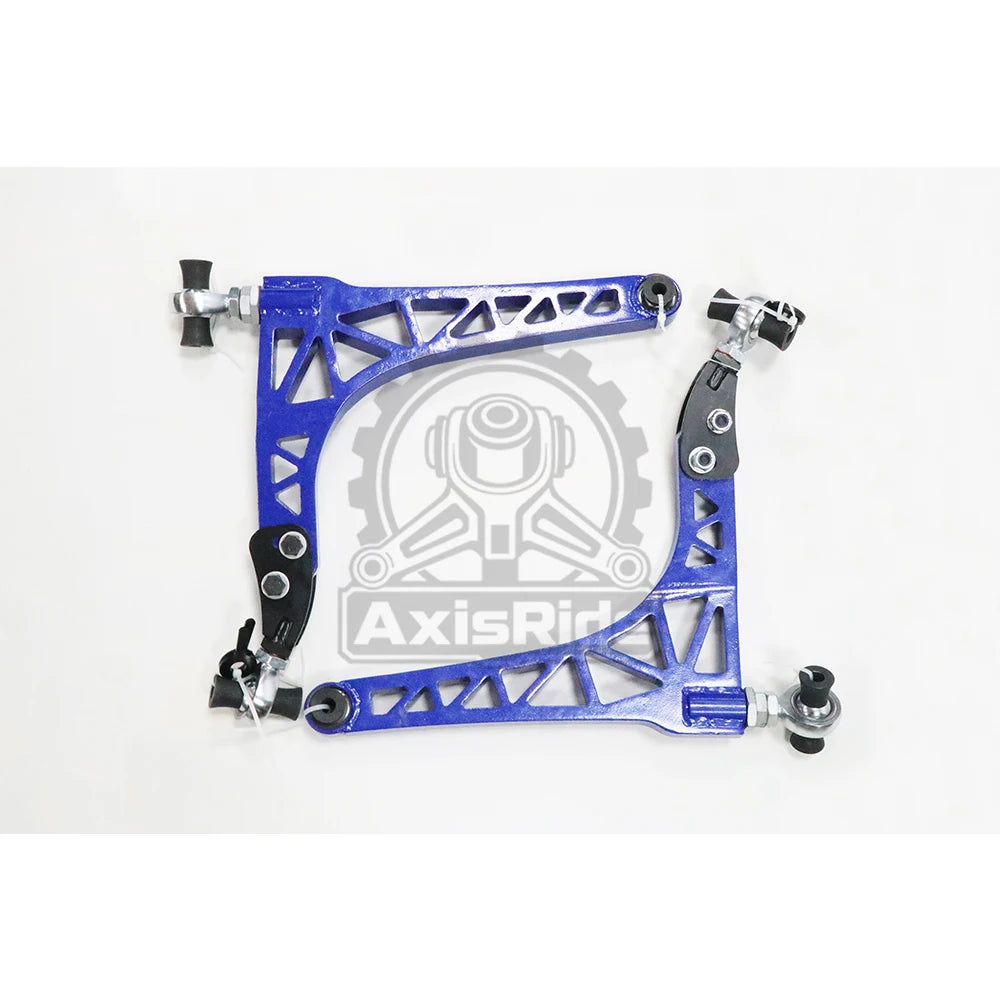

  • Lower control arms
  • Assembled tie rods
  • Brake adapters for M model brakes
  • 45 mm coilover adapter sleeve
  • Ackermann adjustment kit

Key specs

  • Steering lock: 65 degrees, parallel steering
  • Placement: Front
  • Material: Stainless steel
  • Recommended camber: -4.5 +/- 0.5 degrees
  • Recommended caster: 6 +/- 0.5 degrees
  • Recommended toe: 2 mm out if Ackermann is 0 or negative, 0 if Ackermann is positive
  • Coilover adapter sleeve: 45 mm

Features

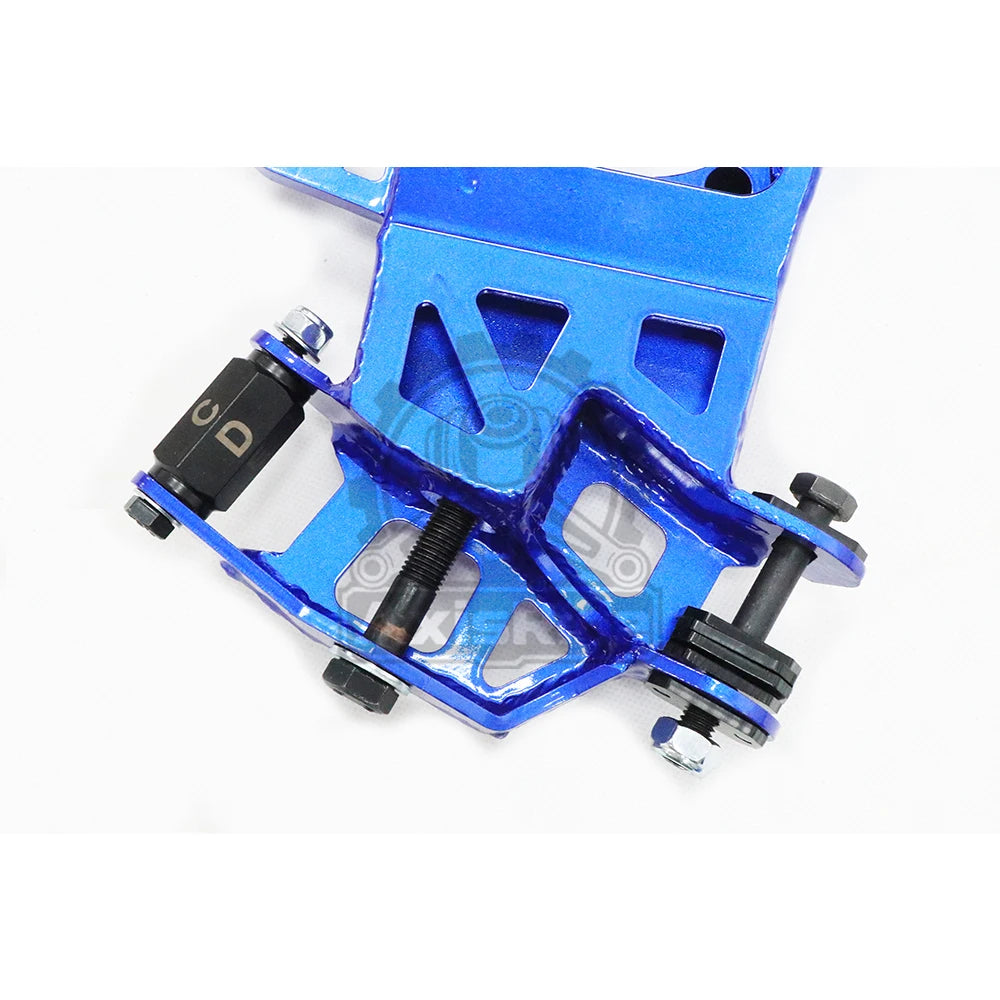

  • Ackermann adjustable toward positive or negative at the track
  • Adjustable lock stopper

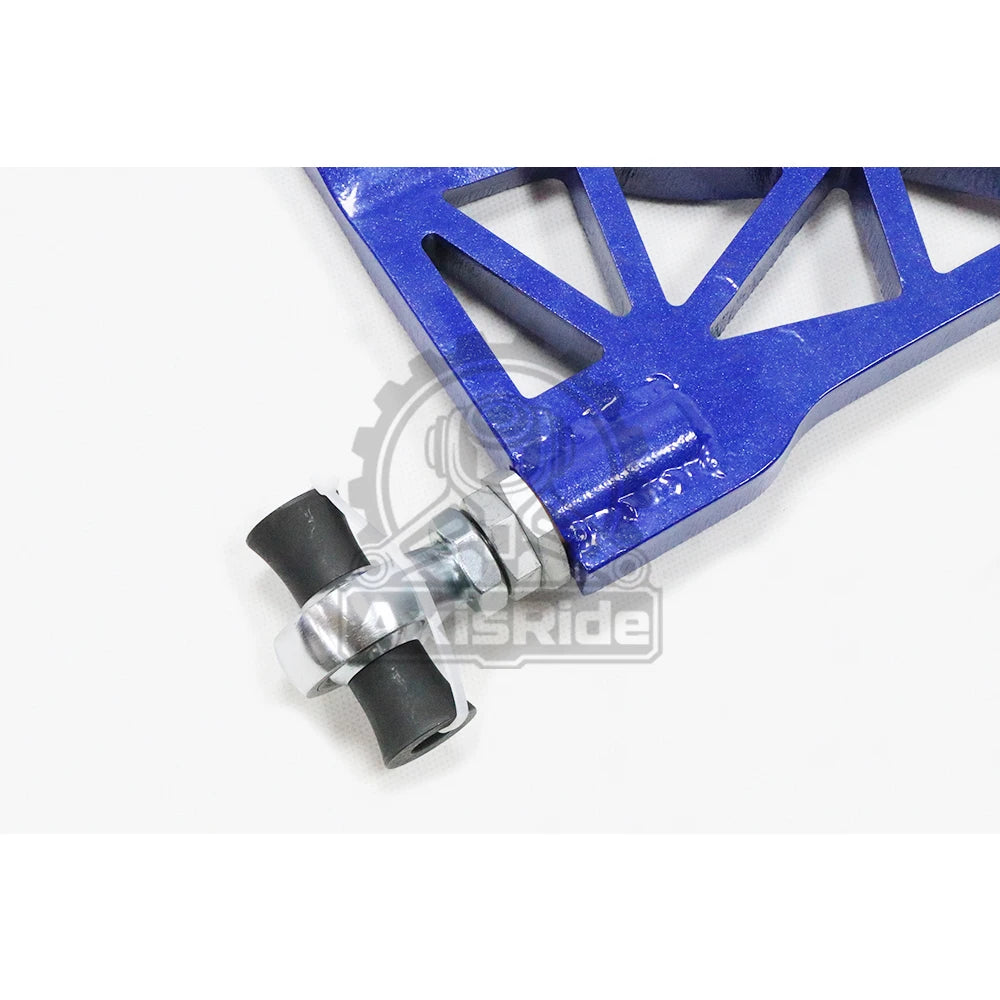

  • One-piece lower control arm in place of the factory lower links
  • Higher front roll center on a lowered car
  • Factory wheel speed (ABS) sensor can be reused

Professional installation and a wheel alignment are recommended.

View full details

About this angle kit for the BMW BMW E90

Angle kits increase how far the front wheels can turn, which lets you hold bigger drift angles and catch the car when it snaps in a BMW BMW E90.

Fitment notes

  • Listed for: BMW BMW E90.
  • Specs, lead time and warranty come from Lower HQ and can change. The details above this guide are the latest we have.

Not sure it fits? Send us your year, make, model, trim and drivetrain and we'll check with the supplier before you order.

Ask about fitment

What else to plan for

  • Coilovers with the right travel and spring rates for drifting. See coilovers.
  • A drift alignment. Angle kits change the steering geometry, so get the car aligned afterwards.
  • Clearance checks at full lock for tires, brake lines and the chassis.

More for your car: BMW Coilovers & Suspension ยท All Steering Angle Kits

Questions about BMW BMW E90 steering angle parts

Will this fit my BMW BMW E90?
It is listed for the BMW BMW E90. Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an angle kit to start drifting?
No. Most drivers learn on factory lock first. An angle kit helps once you are holding bigger angles and running out of steering lock.
Do I need an alignment after installing an angle kit?
Yes. Angle kits change steering geometry, so get the car aligned afterwards and tell the shop how you use the car.
Where do specs and warranty details come from?
From Lower HQ. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
