SPL Part Front Swaybar Endlinks GR86/BRZ/GT86/FR-S

SPL Part Front Swaybar Endlinks GR86/BRZ/GT86/FR-S

Regular price $249.00 USD
Regular price Sale price $249.00 USD
Sale Out of stock
Shipping calculated at checkout.
Quantity

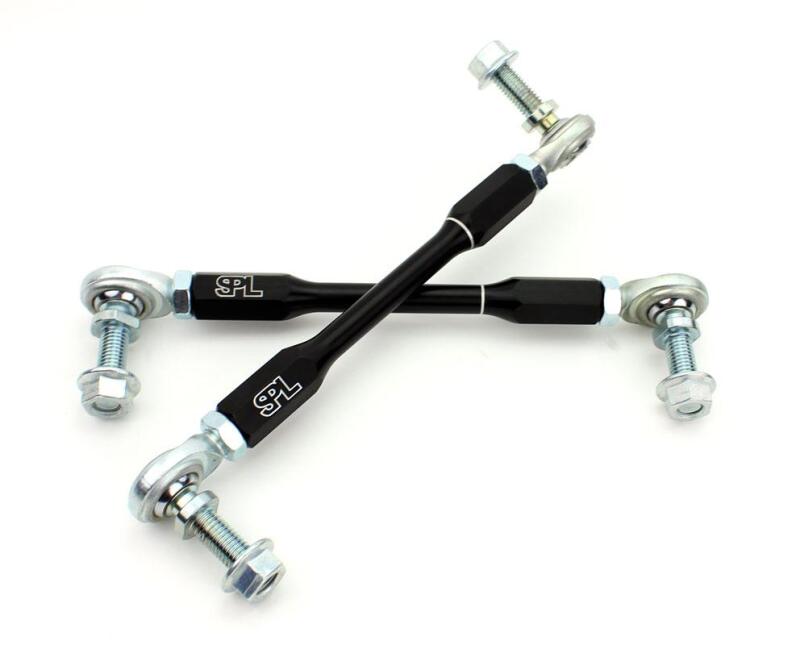

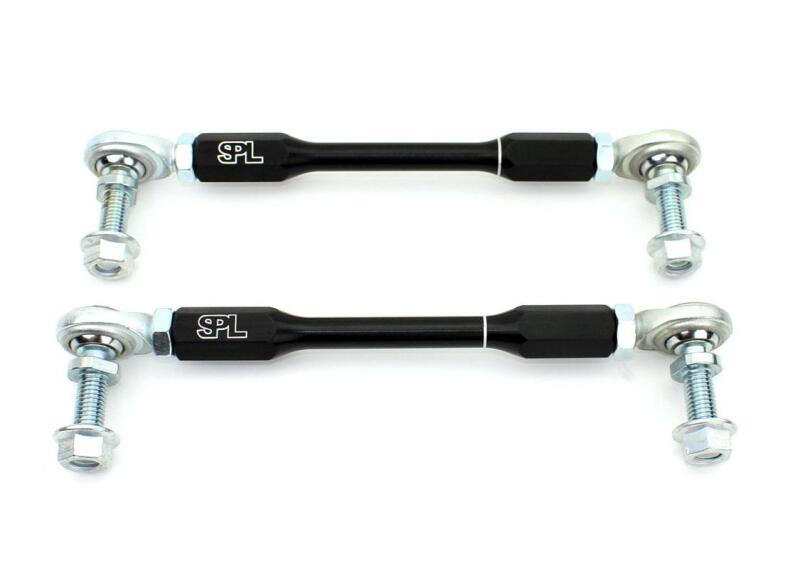

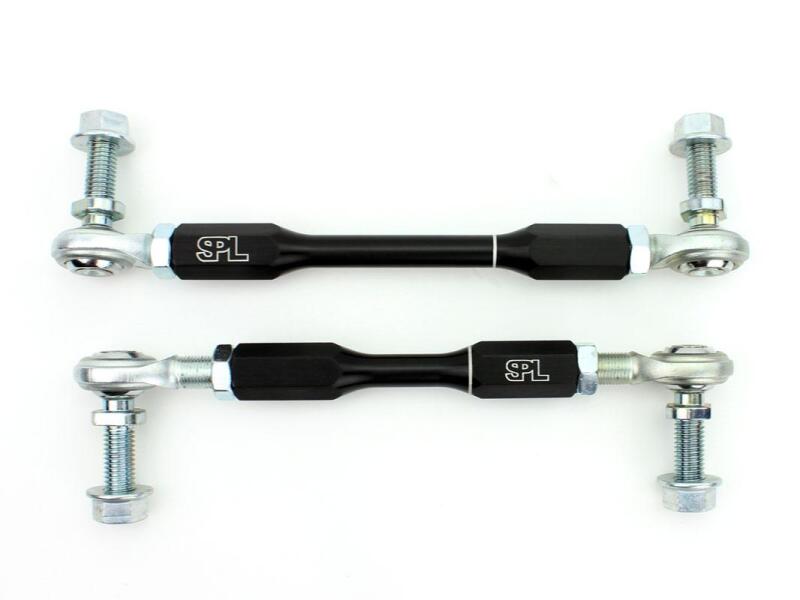

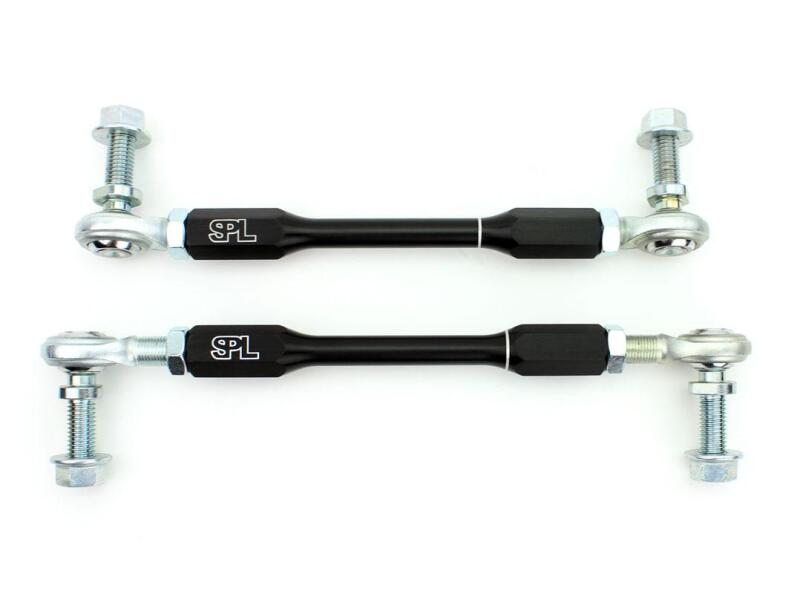

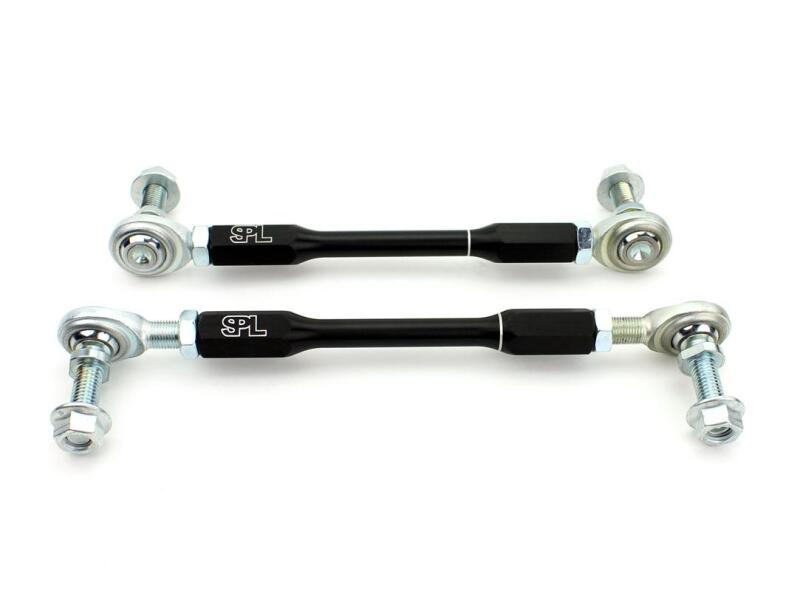

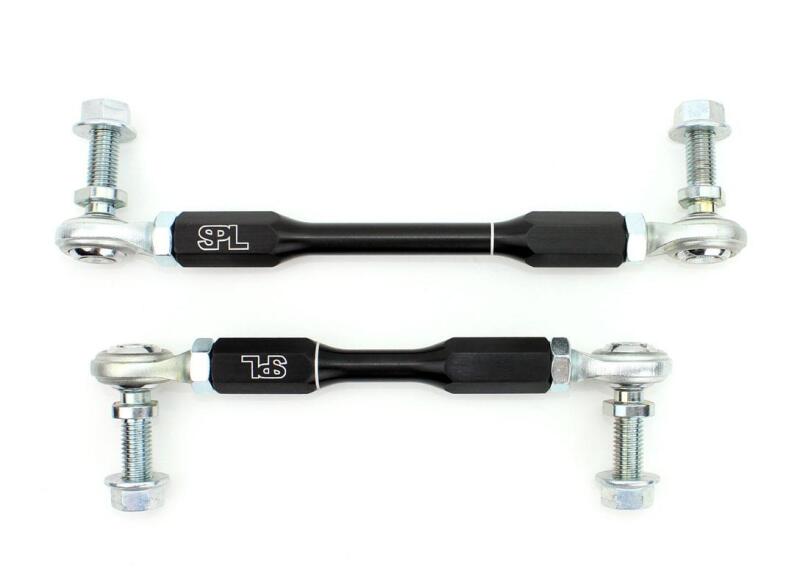

SPL Parts PRO Front Endlinks (FE) for the FRS/BRZ/08+WRX feature massive 2-piece Teflon lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars.  Custom heat treated Chromoly High Misalignment Studs connect to the sway bar and strut and offer extreme articulation capability (65deg) to prevent the endlink from binding when used with different adjustment holes on aftermarket sway bars.  This version is recommended when using OEM Front Lower Control Arms and OEM front struts.  Some aftermarket coilovers move the upper strut mount slightly and can cause interference with the sway bar endlink and our adjustable Lower Control arm and for those applications we recommend the short version found HERE.

Our Endlinks are length adjustable to eliminate preload on the sway bars, which can result from uneven settling of springs or uneven suspension heights from corner weighting.  These endlinks are perfect for street or race applications.

Sold as a pair.

Made in the USA.

Application: 2013+ Scion FR-S/Subaru BRZ/Toyota GT86/86



Installation Instructions:



SPL Parts Front Endlinks



View full details

Before you order: fitment and setup

This SPL Parts part works on the anti-roll side of the suspension, one of the most noticeable handling changes for the money.

Fitment notes

  • Specs, lead time and warranty come from SPL Parts and can change. The details above this guide are the latest we have.

Not sure it fits? Tell us exactly what you drive and we'll confirm fitment with the supplier first. It's free and saves a return.

Ask about fitment

Plan the whole job

  • Adjustable end links if the car is lowered or lifted, so the bar sits at the right angle. See sway bars and end links.
  • Fresh mount bushings for the bar itself.

More for your car: GR86 / BRZ / FR-S Coilovers & Suspension · All Sway Bars & End Links

Questions

Will this fit my your car?
Check the product title and details for the vehicles it is listed for. If you are not sure, contact us with your year, make, model and trim and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing this?
If the part changes or affects suspension geometry, yes. It is a good idea after any arm, link or bushing change.
Can I install it myself?
Many bolt-on parts can be installed at home with the right tools and a safe way to support the car. Pressed bushings and anything you are unsure about are best left to a shop.
Where do specs and warranty details come from?
From SPL Parts. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
