SF Racing

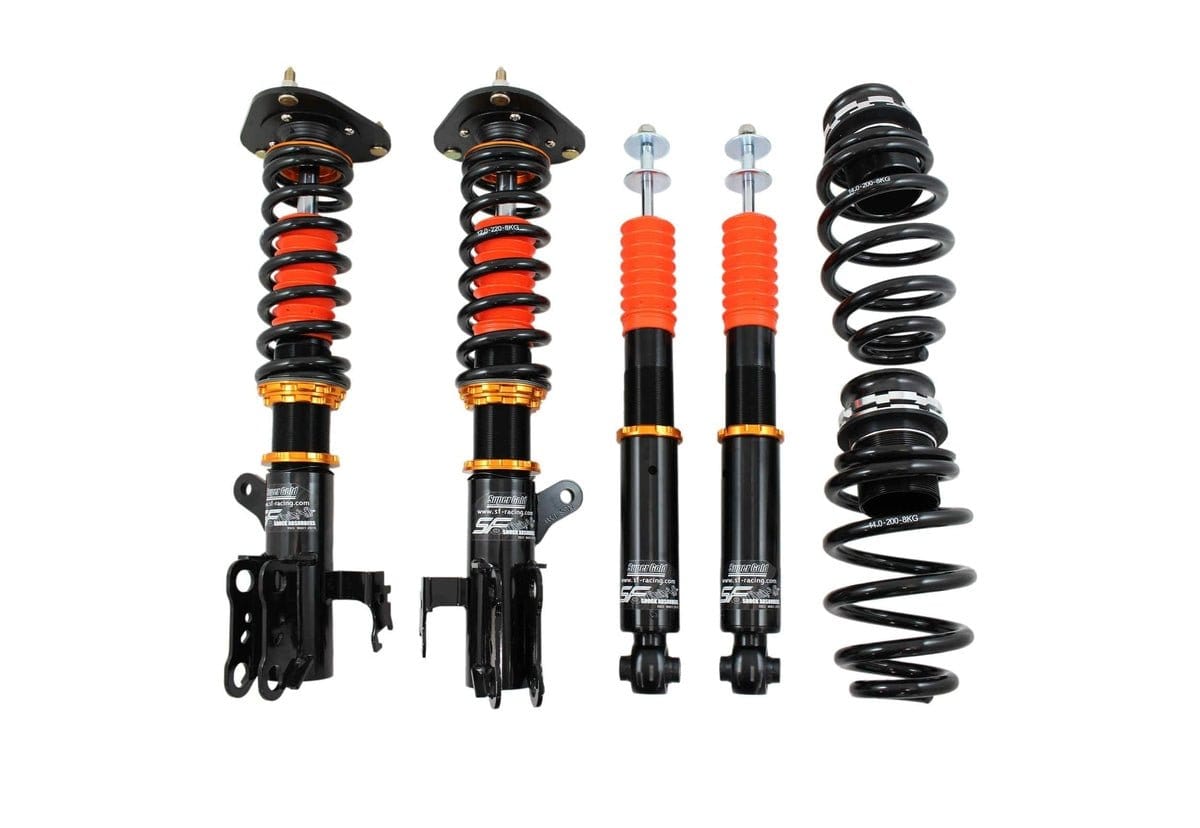

SF Racing Track Coilovers for 2020+ Cadillac CT4

SF Racing Track Coilovers for 2020+ Cadillac CT4

$1,095.00 USD
$1,200.00 USD $1,095.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: 2020+ Cadillac CT4Fitment notes & questions

SF Racing's Track Coilovers for the 2020+ Cadillac CT4 use firmer, track-focused valving for drivers who want sharper response and more control, while staying usable on the street. This version is listed for AWD/RWD models.

What you get

Up front it is a true coilover; the rear keeps a divorced layout, with the spring and shock mounted separately like the factory setup. Damper bodies are 52mm front and 46mm rear. It comes with 8.3 kg/mm (about 465 lb/in) springs up front and 10 kg/mm (about 560 lb/in) at the rear. Damping is 1-way: a single knob with 32 settings changes rebound and compression together, which keeps tuning quick. The front top mounts are aluminum with rubber bushings, with aluminum camber plates with pillowball bushings available as an option.

Highlights

  • Monotube damper design for better heat control and fewer leaks
  • 32-level damping adjustment, rebound and compression combined on one adjuster
  • Built-in dust boots and bump stops
  • Bolt-on install with no modifications, unless the notes below say otherwise
  • Ride height lowers roughly 1 to 2.5 inches below stock (SF Racing's figure) without giving up suspension travel
  • Independent lower mount adjustment keeps spring preload and damper travel where they should be when you change height
  • T6-6061 aluminum hardware (top mounts, perches and collars), anodized against corrosion
  • Zinc-plated shock bodies for rust protection
  • Cold-wound SAE9254 spring steel
  • NOK seals and Italian IP damping oil (20W)

Who it suits

Best suited to cars that do track days, autocross or spirited back-road driving, and owners who accept a firmer ride for more control.

Specifications

Part number SF-CD02-02-TR
Vehicle 2020+ Cadillac CT4
Drivetrain AWD/RWD
Damper model Track Series
Damping 1-Way: Rebound and Compression
Damper size (front / rear) 52mm diameter / 46mm diameter
Spring rate (front / rear) 8.3 kg/mm / 10 kg/mm
Design (front / rear) True Coilover / Divorced (Separate shock and spring)
Top mounts (front) Standard: Aluminum with Rubber Bushings / Optional: Aluminum Camber Plates with Pillowball Bushings
Top mounts (rear) Not Applicable
View full details

Before you order: Cadillac CT4 fitment and setup

This SF Racing kit replaces the factory springs and shocks on the 2020+ Cadillac CT4 with a height-adjustable coilover at each corner, so you set the ride height instead of living with a fixed drop.

Fitment notes

  • Listed for: 2020+ Cadillac CT4.
  • Model years: 2020+. Newer years can change parts mid-generation, so match the exact year.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Send us your year, make, model, trim and drivetrain and we'll check with the supplier before you order.

Ask about fitment

Plan the whole job

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels.

More for your car: Cadillac Coilovers & Suspension · All Coilovers

Questions about Cadillac CT4 coilovers

Will this fit my Cadillac CT4?
It is listed for the 2020+ Cadillac CT4. Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
