SF Racing Track Coilovers for 2001-2007 Dodge Caravan (RS)

SF Racing Track Coilovers for 2001-2007 Dodge Caravan (RS)

$1,095.00 USD
$1,200.00 USD $1,095.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: 2001-2007 Dodge Caravan (RS)Fitment notes & questions

For a 2001-2007 Dodge Caravan (RS) that sees track days as well as the commute, the SF Racing Track Coilovers add firmer valving on top of full height and damping adjustment. This version is listed for FWD models.

What you get

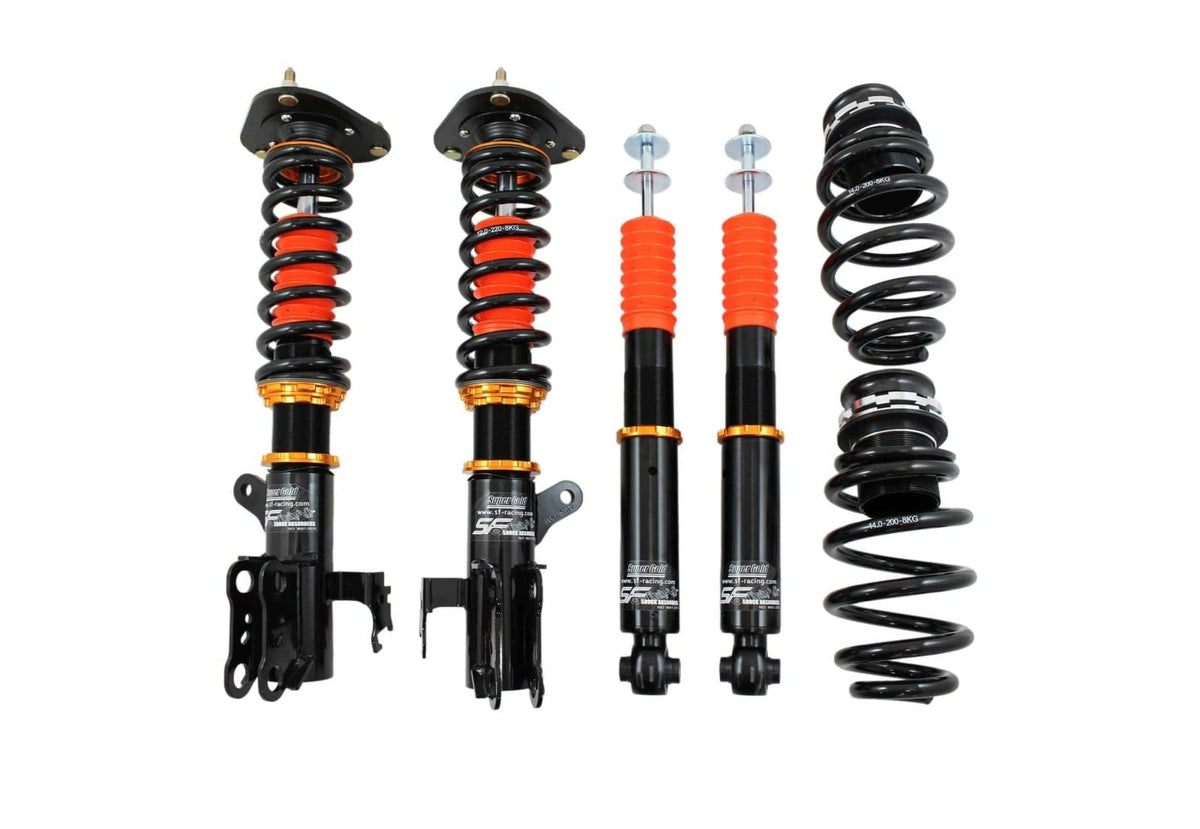

Expect true coilovers at the front and a divorced rear, where the spring and damper sit in separate locations as they do from the factory. Damper bodies are 52mm front and 50mm rear. It comes with 9 kg/mm (about 504 lb/in) springs up front and Not Applicable at the rear. Damping is 1-way: a single knob with 32 settings changes rebound and compression together, which keeps tuning quick. The front top mounts are aluminum with rubber bushing, with aluminum camber plates (pillowball bushings) available as an option.

Highlights

  • Monotube damper design for better heat control and fewer leaks
  • 32-level damping adjustment, rebound and compression combined on one adjuster
  • Built-in dust boots and bump stops
  • Bolt-on install with no modifications, unless the notes below say otherwise
  • Adjustable ride height, roughly 1 to 2.5 inches below factory per SF Racing, while keeping suspension travel
  • Separate lower-mount (length) adjustment, so height changes don't preload the spring
  • T6-6061 aluminum hardware (top mounts, perches and collars), anodized against corrosion
  • Zinc-plated shock bodies for rust protection
  • Cold-wound SAE9254 spring steel
  • NOK seals and Italian IP damping oil (20W)

Important: No Rear Spring.

Who it suits

Ideal if body control and response matter more to you than the softest possible ride.

Specifications

Part number SF-DG06-04-TR
Vehicle 2001-2007 Dodge Caravan
Chassis RS
Drivetrain FWD
Damper model Track Series
Damping 1-Way: Rebound and Compression
Damper size (front / rear) 52mm diameter / 50mm diameter
Spring rate (front / rear) 9 kg/mm / Not Applicable
Design (front / rear) True Coilover / Divorced
Top mounts (front) Standard: Aluminum with Rubber Bushing / Optional: Aluminum Camber Plates (Pillowball Bushings)
Top mounts (rear) Not Applicable
Notes No Rear Spring
View full details

About this coilover kit for the Dodge Caravan

This SF Racing kit replaces the factory springs and shocks on the 2001-2007 Dodge Caravan with a height-adjustable coilover at each corner, so you set the ride height instead of living with a fixed drop.

Fitment notes

  • Listed for: 2001-2007 Dodge Caravan (RS).
  • Model years: 2001-2007. Check your car's year falls inside this range.
  • Chassis code RS: the same model name is often used across several chassis codes, so match the code, not just the name.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Send us your year, make, model, trim and drivetrain and we'll check with the supplier before you order.

Ask about fitment

What else to plan for

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels.

More for your car: Dodge Coilovers & Suspension · All Coilovers

Questions about Dodge Caravan coilovers

Will this fit my Dodge Caravan?
It is listed for the 2001-2007 Dodge Caravan (RS). Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
