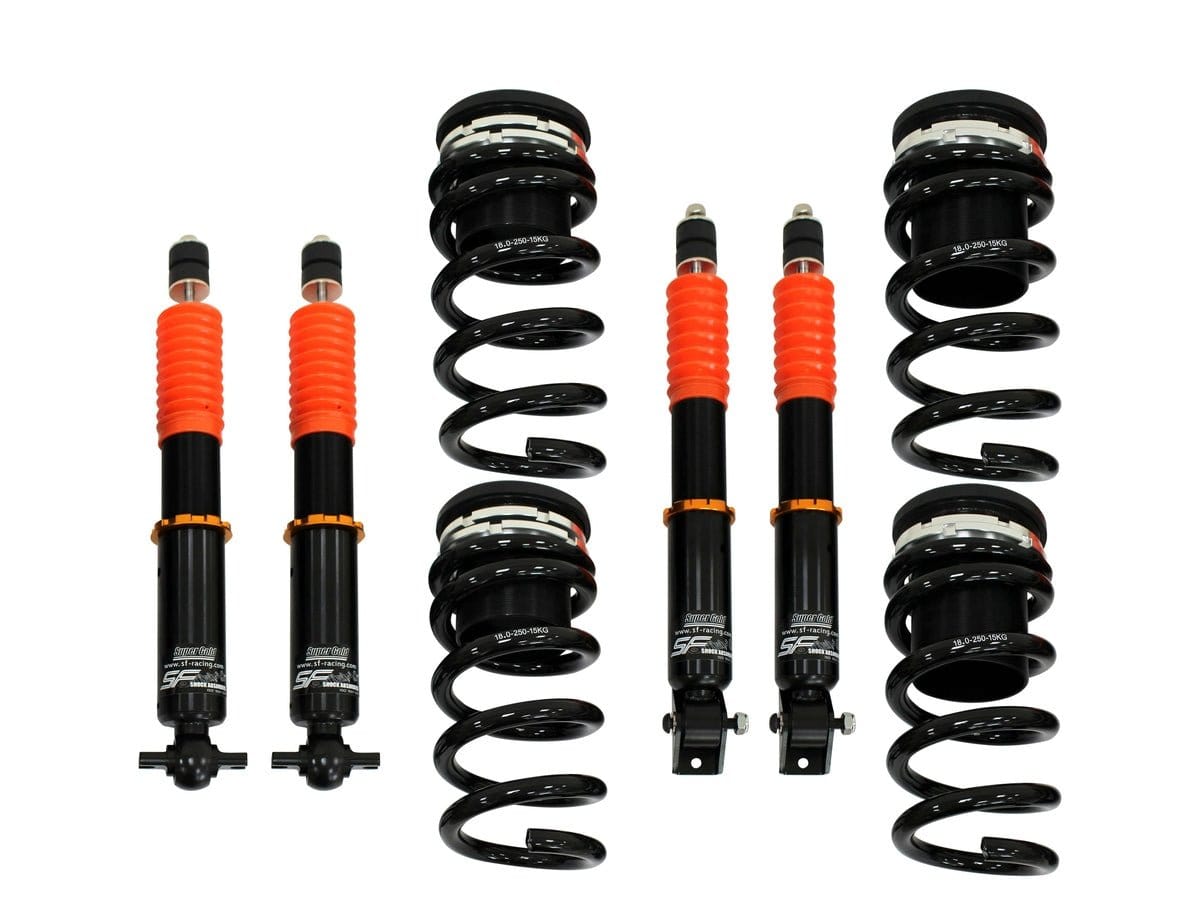

SF Racing Track Coilovers for 1979-1992 Mercedes-Benz S-Class (W126/C126)

SF Racing Track Coilovers for 1979-1992 Mercedes-Benz S-Class (W126/C126)

$1,195.00 USD
$1,300.00 USD $1,195.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: 1979-1992 Mercedes-Benz S-Class (W126/C126)Fitment notes & questions

For a 1979-1992 Mercedes-Benz S-Class (W126/C126) that sees track days as well as the commute, the SF Racing Track Coilovers add firmer valving on top of full height and damping adjustment. This version is listed for RWD models.

What you get

Front and rear both use a divorced layout, with springs and dampers mounted separately as on the factory suspension. Damper bodies are 46mm front and rear. It comes with 15 kg/mm (about 840 lb/in) springs up front and 12 kg/mm (about 672 lb/in) at the rear. Damping is 1-way: a single knob with 32 settings changes rebound and compression together, which keeps tuning quick.

Features

  • Monotube damper design for better heat control and fewer leaks
  • 32 damping settings on a single knob that sets rebound and compression together
  • Zinc-plated shock bodies for rust protection
  • Cold-wound SAE9254 spring steel
  • NOK seals and Italian IP damping oil (20W)
  • Built-in dust boots and bump stops
  • Bolt-on install with no modifications, unless the notes below say otherwise
  • Ride height lowers roughly 1 to 2.5 inches below stock (SF Racing's figure) without giving up suspension travel
  • Separate lower-mount (length) adjustment, so height changes don't preload the spring
  • Anodized T6-6061 aluminum top mounts, spring perches and collars for corrosion resistance

Who it suits

A good fit for dual-duty cars that commute during the week and hit the track on weekends.

Specifications

Part number SF-MB14-11-TR
Vehicle 1979-1992 Mercedes-Benz S-Class
Chassis W126/C126
Drivetrain RWD
Damper model Track Series
Damping 1-Way: Rebound and Compression
Damper size (front / rear) 46mm diameter / 46mm diameter
Spring rate (front / rear) 15 kg/mm / 12 kg/mm
Design (front / rear) Divorced (Separate shock and spring) / Divorced (Separate shock and spring)
Top mounts (front) Not Applicable
Top mounts (rear) Not Applicable
View full details

Before you order: Mercedes-Benz S-Class fitment and setup

Coilovers combine the spring and damper in one adjustable unit. That lets you choose your ride height on the Mercedes-Benz S-Class and, on kits with damping adjustment, tune how firm it feels.

Fitment notes

  • Listed for: 1979-1992 Mercedes-Benz S-Class (W126/C126).
  • Model years: 1979-1992. Check your car's year falls inside this range.
  • Chassis code W126/C126: parts for other chassis codes of the same model usually won't fit.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Tell us exactly what you drive and we'll confirm fitment with the supplier first. It's free and saves a return.

Ask about fitment

Plan the whole job

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels. Our ride height and wheel fitment calculator shows how much drop and offset change you are planning.
  • The right spring rate. Compare the rates listed here with what our spring rate calculator suggests for your car's weight and use.

More for your car: Mercedes-Benz Coilovers & Suspension · All Coilovers

Questions about Mercedes-Benz S-Class coilovers

Will this fit my Mercedes-Benz S-Class?
It is listed for the 1979-1992 Mercedes-Benz S-Class (W126/C126). Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
