SF Racing Sport Coilovers for 1995-2003 Alfa Romeo GTV (916)

SF Racing Sport Coilovers for 1995-2003 Alfa Romeo GTV (916)

$995.00 USD
$1,100.00 USD $995.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: 1995-2003 Alfa Romeo GTV (916)Fitment notes & questions

SF Racing's Sport Coilovers for the 1995-2003 Alfa Romeo GTV (916) are a street-focused kit: they lower the car, let you set the exact ride height and give you damping adjustment while keeping a ride that works every day. This version is listed for FWD models.

What you get

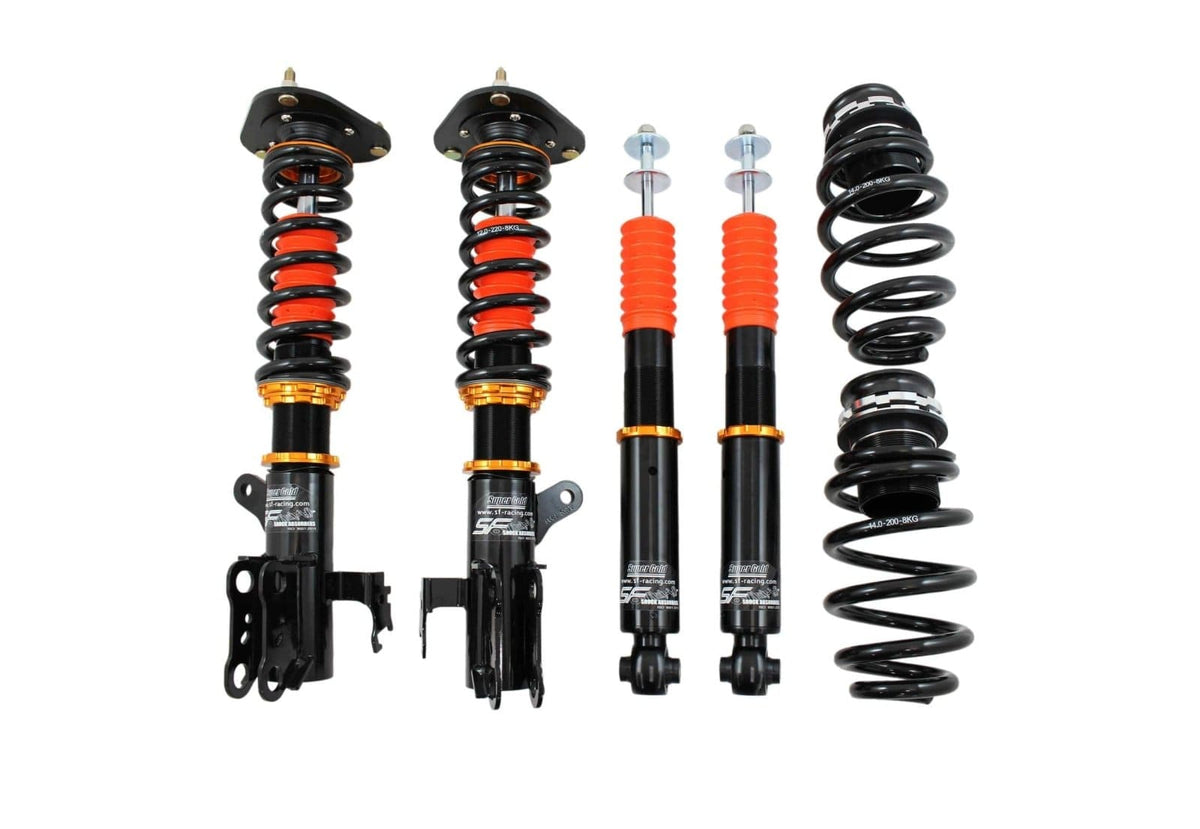

Expect true coilovers at the front and a divorced rear, where the spring and damper sit in separate locations as they do from the factory. Damper bodies are 52mm front and 46mm rear. It comes with 6.6 kg/mm (about 370 lb/in) springs up front and 7 kg/mm (about 392 lb/in) at the rear. Damping is 1-way: a single knob with 32 settings changes rebound and compression together, which keeps tuning quick. The front top mounts are aluminum with rubber bushing.

Features

  • Monotube dampers, which shed heat well and hold their damping under hard use
  • 32-level damping adjustment, rebound and compression combined on one adjuster
  • NOK seals and Italian IP damping oil
  • Built-in dust boots and bump stops
  • Bolt-on install with no modifications, unless the notes below say otherwise
  • Ride height lowers roughly 1 to 2.5 inches below stock (SF Racing's figure) without giving up suspension travel
  • Independent lower mount adjustment keeps spring preload and damper travel where they should be when you change height
  • Anodized T6-6061 aluminum top mounts, spring perches and collars for corrosion resistance
  • Zinc-plated shock bodies for rust protection
  • SAE9254 cold-wound springs

Important: 4CYL or 6CYL.

Who it suits

Ideal for street cars that need a sensible drop and some tuning range, without going to track-level stiffness.

Specifications

Part number SF-AL03-01-SP
Vehicle 1995-2003 Alfa Romeo GTV
Chassis 916
Drivetrain FWD
Damper model Sport Series
Damping 1-Way: Rebound and Compression
Damper size (front / rear) 52mm diameter / 46mm diameter
Spring rate (front / rear) 6.6 kg/mm / 7 kg/mm
Design (front / rear) True Coilover / Divorced (Separate shock and spring)
Top mounts (front) Aluminum with Rubber Bushing
Top mounts (rear) Not Applicable
Notes 4CYL or 6CYL
View full details

SF Racing coilovers for your Alfa Romeo GTV: what to know

If you want more control over stance and handling than lowering springs give you on a Alfa Romeo GTV, a coilover kit like this SF Racing set is the usual next step.

Fitment notes

  • Listed for: 1995-2003 Alfa Romeo GTV (916).
  • Model years: 1995-2003. Check your car's year falls inside this range.
  • Chassis code 916: you can usually find it in your vehicle documents or by decoding your VIN.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Message us your car's details and we'll double-check fitment with the supplier before you buy.

Ask about fitment

Parts that usually go with it

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels.

More for your car: Coilovers · All Coilovers

Questions about Alfa Romeo GTV coilovers

Will this fit my Alfa Romeo GTV?
It is listed for the 1995-2003 Alfa Romeo GTV (916). Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
