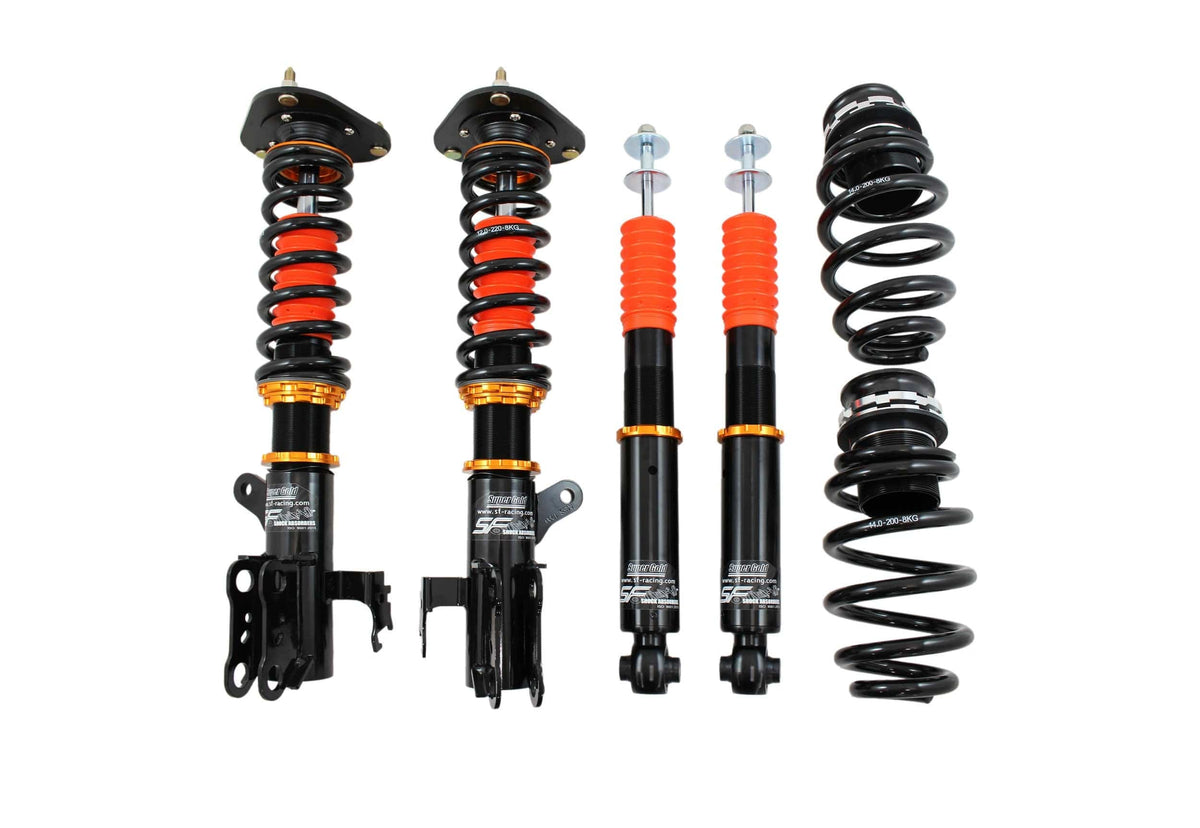

SF Racing Sport Coilovers for 1985-1996 Mercedes-Benz E-Class (W124)

SF Racing Sport Coilovers for 1985-1996 Mercedes-Benz E-Class (W124)

$1,095.00 USD
$1,200.00 USD $1,095.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: 1985-1996 Mercedes-Benz E-Class (W124)Fitment notes & questions

Built for daily-driven cars, this SF Racing Sport kit replaces the factory struts and springs on the 1985-1996 Mercedes-Benz E-Class (W124) with height-adjustable coilovers and single-knob damping adjustment. This version is listed for RWD models.

How this kit is set up for the 1985-1996 Mercedes-Benz E-Class

Front and rear both use a divorced layout, with springs and dampers mounted separately as on the factory suspension. Damper bodies are 52mm front and 46 rear. It comes with 20 kg/mm (about 1120 lb/in) springs up front and 14 kg/mm (about 784 lb/in) at the rear. Damping is 1-way: a single knob with 32 settings changes rebound and compression together, which keeps tuning quick. The front top mounts are aluminum with rubber bushings, with aluminum camber plates with pillowball bushings available as an option.

Key features

  • Monotube dampers, which shed heat well and hold their damping under hard use
  • 32 damping settings on a single knob that sets rebound and compression together
  • Ride height lowers roughly 1 to 2.5 inches below stock (SF Racing's figure) without giving up suspension travel
  • Independent lower mount adjustment keeps spring preload and damper travel where they should be when you change height
  • T6-6061 aluminum hardware (top mounts, perches and collars), anodized against corrosion
  • Zinc-plated shock bodies for rust protection
  • Cold-wound SAE9254 spring steel
  • NOK seals and Italian IP damping oil
  • Built-in dust boots and bump stops
  • Bolt-on install with no modifications, unless the notes below say otherwise

Who it suits

Best suited to daily drivers and weekend canyon cars where ride comfort still matters.

Specifications

Part number SF-MB08-01-SP
Vehicle 1985-1996 Mercedes-Benz E-Class
Chassis W124
Drivetrain RWD
Damper model Sport Series
Damping 1-Way: Rebound and Compression
Damper size (front / rear) 52mm diameter / 46 diameter
Spring rate (front / rear) 20 kg/mm / 14 kg/mm
Design (front / rear) Divorced (Separate shock and spring) / Divorced (Separate shock and spring)
Top mounts (front) Standard: Aluminum with Rubber Bushings / Optional: Aluminum Camber Plates with Pillowball Bushings
Top mounts (rear) Not Applicable
View full details

SF Racing coilovers for your Mercedes-Benz E-Class: what to know

If you want more control over stance and handling than lowering springs give you on a Mercedes-Benz E-Class, a coilover kit like this SF Racing set is the usual next step.

Fitment notes

  • Listed for: 1985-1996 Mercedes-Benz E-Class (W124).
  • Model years: 1985-1996. Check your car's year falls inside this range.
  • Chassis code W124: you can usually find it in your vehicle documents or by decoding your VIN.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Message us your car's details and we'll double-check fitment with the supplier before you buy.

Ask about fitment

Parts that usually go with it

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels.

More for your car: Mercedes-Benz Coilovers & Suspension · All Coilovers

Questions about Mercedes-Benz E-Class coilovers

Will this fit my Mercedes-Benz E-Class?
It is listed for the 1985-1996 Mercedes-Benz E-Class (W124). Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
