• SF Racing N2 Coilovers for 2012-2020 Toyota 86 (ZN6)
1 1

SF Racing

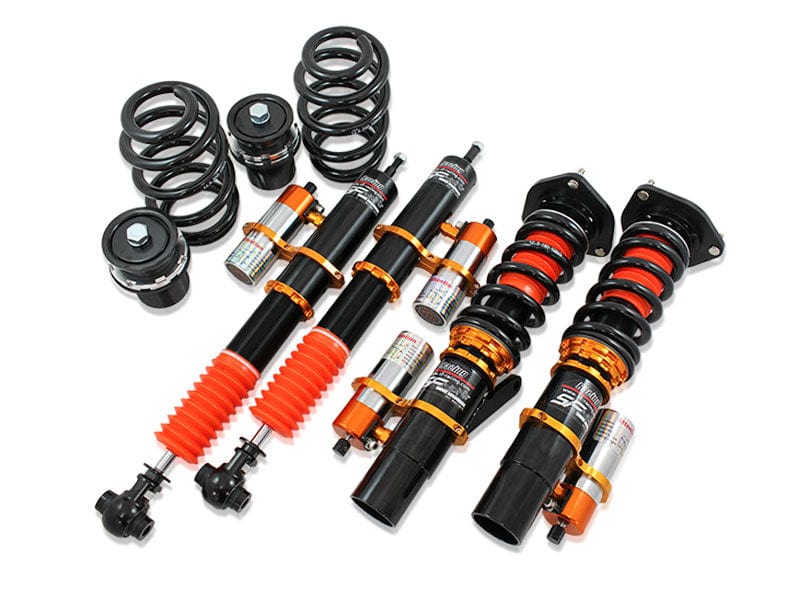

SF Racing N2 Coilovers for 2012-2020 Toyota 86 (ZN6)

SF Racing N2 Coilovers for 2012-2020 Toyota 86 (ZN6)

$1,795.00 USD
$1,900.00 USD $1,795.00 USD
Sale Out of stock
Shipping calculated at checkout.

Listed for: 2012-2020 Toyota 86 (ZN6)Fitment notes & questions

SF Racing N2 Coilovers are designed for performance-focused drivers looking for high-end suspension upgrades for their 2012-2020 Toyota 86 (ZN6) are the best coilovers available for street-driven cars. SF Sport Coilovers were designed to give a wide range of ride height adjustability without reducing the spring travel. Each corner of the car has 32 levels (or clicks) of damping adjustability. This combines both the rebound and compression into one adjustment knob. The coilovers also use rubber top mounts to help reduce the noise that typically comes with high performance aftermarket coilovers. SF Coilovers come standard with an anodized coating to protect against rust and corrosion caused by extreme use and harsh external elements.

SF Racing parts are manufactured from high quality products sourced from around the world while still maintaining a very affordable price. SF Racing Sport Coilovers are the perfect setup for your daily driver.

Features

  • Monotube Damper Design – Improves heat dissipation and reduces oil leakage.
  • 32-Level Adjustable Damping – Fine-tune rebound and compression for ideal ride quality.
  • Adjustable Ride Height – Lowers 1-2.5 inches below factory height without sacrificing suspension travel.
  • Independent Lower Mount Adjustment – Maintains shock and spring integrity while adjusting height.
  • T6-6061 Aluminum Construction – Lightweight, corrosion-resistant anodized top mounts, perches, and collars.
  • Electroplated Shock Body – Zinc-coated for rust protection.
  • Low-Friction, Pressure-Resistant Housing – Ensures smooth damping and longevity.
  • Pillowball or Reinforced Rubber Top Mounts – Reduces noise while improving handling.
  • SAE9254 Japanese Cold-Wound Springs – Durable and consistent performance.
  • Japanese NOK Seals & Italian IP Damping Oil – Prevents leaks and ensures high-performance damping.
  • Integrated Dust Boots & Bump Stops – Protects components from debris and wear.
  • 100% Bolt-On Replacement – No modifications required (unless otherwise stated in the Specifications section).

Specifications

Part Number SF-TO18-01-N2
Vehicle 2012-2020 Toyota 86
Drivetrain RWD
Chassis ZN6
Damper Model N2 External Reservoir Coilovers
Damping Adjustability 2-Way: Rebound and Compression
Damper Size - Front 52mm diameter
Damper Size - Rear 50mm diameter
Spring Rates - Front 7.2 kg/mm
Spring Rates - Rear 8.3 kg/mm
Top Mounts - Front Standard: Aluminum with Rubber Bushings
Optional: Aluminum Camber Plates with Pillowball Bushings
Top Mounts - Rear Standard: Aluminum with Rubber Bushings
Optional: Aluminum with Pillowball Bushings
Suspension Design - Front True Coilover
Suspension Design - Rear True Coilover
Notes -
View full details

Before you order: Toyota 86 fitment and setup

If you want more control over stance and handling than lowering springs give you on a Toyota 86, a coilover kit like this SF Racing set is the usual next step.

Fitment notes

  • Listed for: 2012-2020 Toyota 86 (ZN6).
  • Model years: 2012-2020. Check your car's year falls inside this range.
  • Chassis code ZN6: parts for other chassis codes of the same model usually won't fit.
  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from SF Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Message us your car's details and we'll double-check fitment with the supplier before you buy.

Ask about fitment

Plan the whole job

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels.

More for your car: GR86 / BRZ / FR-S Coilovers & Suspension · Toyota Coilovers & Suspension · All Coilovers

Questions about Toyota 86 coilovers

Will this fit my Toyota 86?
It is listed for the 2012-2020 Toyota 86 (ZN6). Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From SF Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
