Megan Racing Euro Series Coilover Self-Leveling for BMW X5M 2019+ / X6M 2019+ - 30-click Damping, 12kgf/mm Spring Rate MR-CDK-BG05X-EU

Megan Racing Euro Series Coilover Self-Leveling for BMW X5M 2019+ / X6M 2019+ - 30-click Damping, 12kgf/mm Spring Rate MR-CDK-BG05X-EU

$849.00 USD
$1,049.00 USD $849.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

Listed for: BMW X5M 2019+ / X6M 2019+Fitment notes & questions

Our EU Series coilover system for the G05 X5 has been developed prioritizing ride comfort for those who are seeking to increase the vehicle's exterior aesthetics while still retaining a nice ride. By re-using the OEM front and rear top mounts, road noise is further insulated and kept away from the interior cabin. However with a slight increase of spring rates over stock and sport tuned shock valving, our kit is still more than capable enough for spirited driving or dare we even say track use.

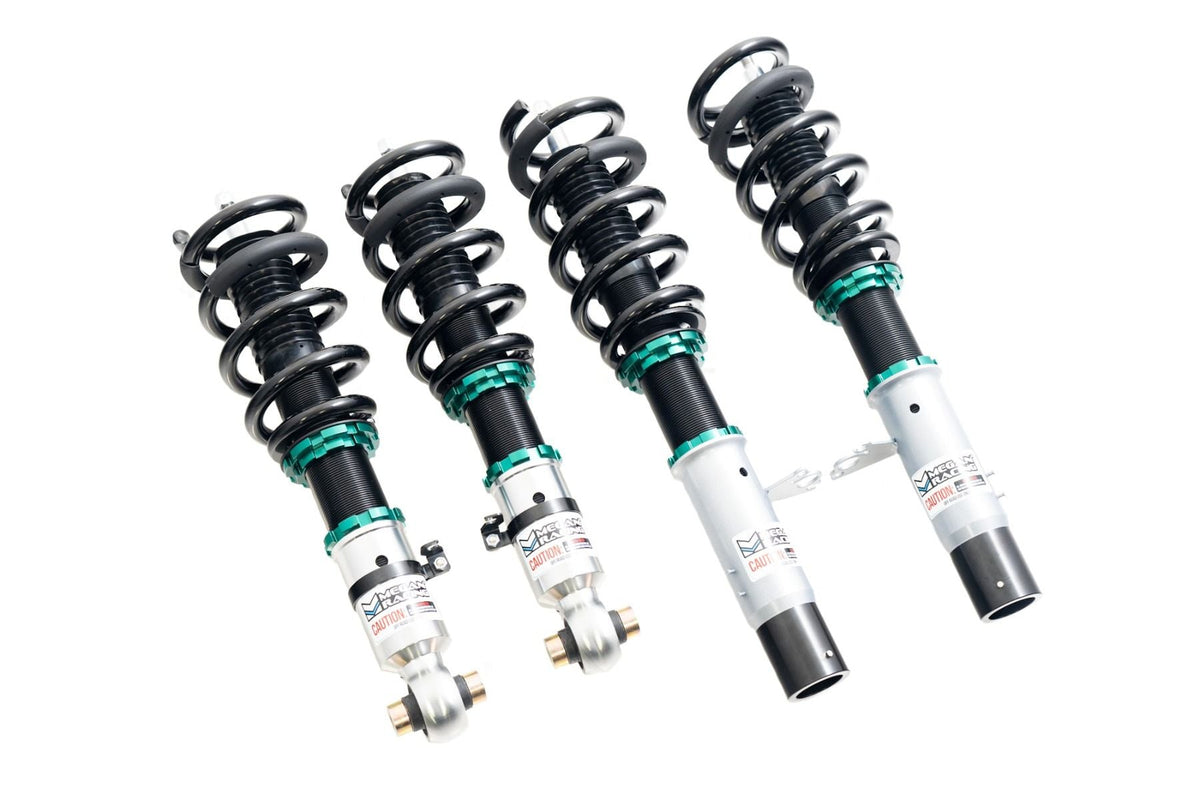

Megan Racing EU Series Suspension Systems are fully adjustable coilover systems which do not break the bank. With it's full length adjustable design, the vehicle's ride height can be adjusted without affecting the shock stroke ensuring a retained ride quality at nearly any height. Monotube internal shock construction separates the oil and hi pressured Nitrogen gas chamber preventing aeration. This allows for immediate shock response and damping consistency. 30-click damping force adjustability will also allow the user to fine tune the ride stiffness and response to his or her preference.

NOTE: This system will delete the vehicle's "Electronic Damper System" if it is equipped and will cause a error notice on the dashboard. However no other systems will be affected.

Applications:
-BMW X5M 2019+ (AWD, G05)

Specifications and Features:
-Spring Rate Front: 12kgf/mm
-Spring Rate Rear: 12kgf/mm
-Internal Construction: Monotube

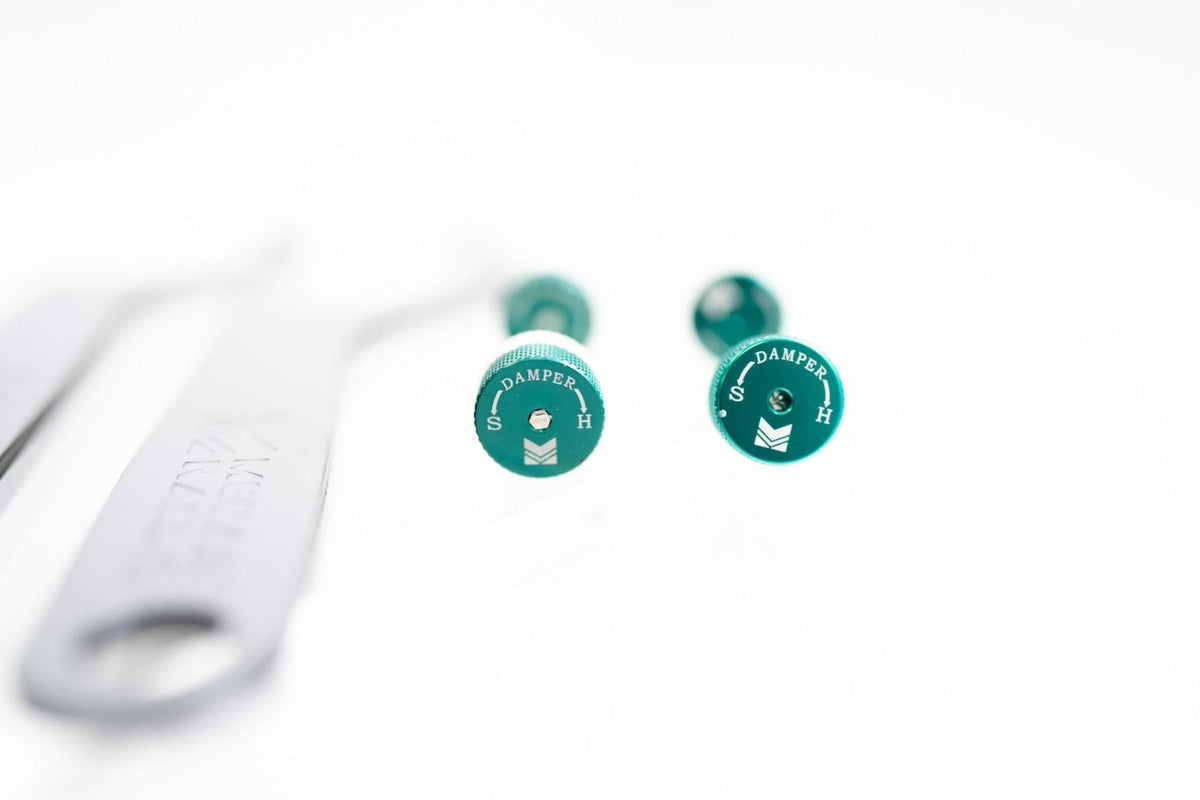

-Damping Force Adjustability: 30-way Compression & Rebound Simultaneous
-Full Length Adjustability
-Must Re-use Front & Rear Factory Top Mounts
-1-Year Warranty Against Manufacturer Defects

View full details

Megan Racing lift parts for your BMW X5M / X6M 2019+: what to know

This Megan Racing part is for raising ride height. Lifting changes suspension angles, so plan the supporting parts at the same time.

Fitment notes

  • Listed for: BMW X5M 2019+ / X6M 2019+.
  • Model years: 2019+. Newer years can change parts mid-generation, so match the exact year.
  • Trim packages: off-road trims with factory lifts or larger tires often take different parts. Check the title for package notes.
  • Specs, lead time and warranty come from Megan Racing and can change. The details above this guide are the latest we have.

Not sure it fits? Tell us exactly what you drive and we'll confirm fitment with the supplier first. It's free and saves a return.

Ask about fitment

Parts that usually go with it

  • Upper control arms to bring alignment back into range and improve droop travel on many lifted trucks.
  • An alignment after the lift.
  • Longer brake lines or sway bar links if the lift height calls for them.

More for your car: BMW Coilovers & Suspension · All Control Arms

Questions about BMW X5M / X6M 2019+ lift parts

Will this fit my BMW X5M / X6M 2019+?
It is listed for the BMW X5M 2019+ / X6M 2019+. Check your year, model, drivetrain and chassis code against the product title. If anything is different, contact us and we will confirm fitment with the supplier before you order.
Do I need new control arms after lifting?
Many lifted trucks use aftermarket upper control arms to bring alignment back into range. Check the kit notes for what is included.
Do I need an alignment after a lift?
Yes. Plan on an alignment after any lift, level or control arm change.
Where do specs and warranty details come from?
From Megan Racing. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
