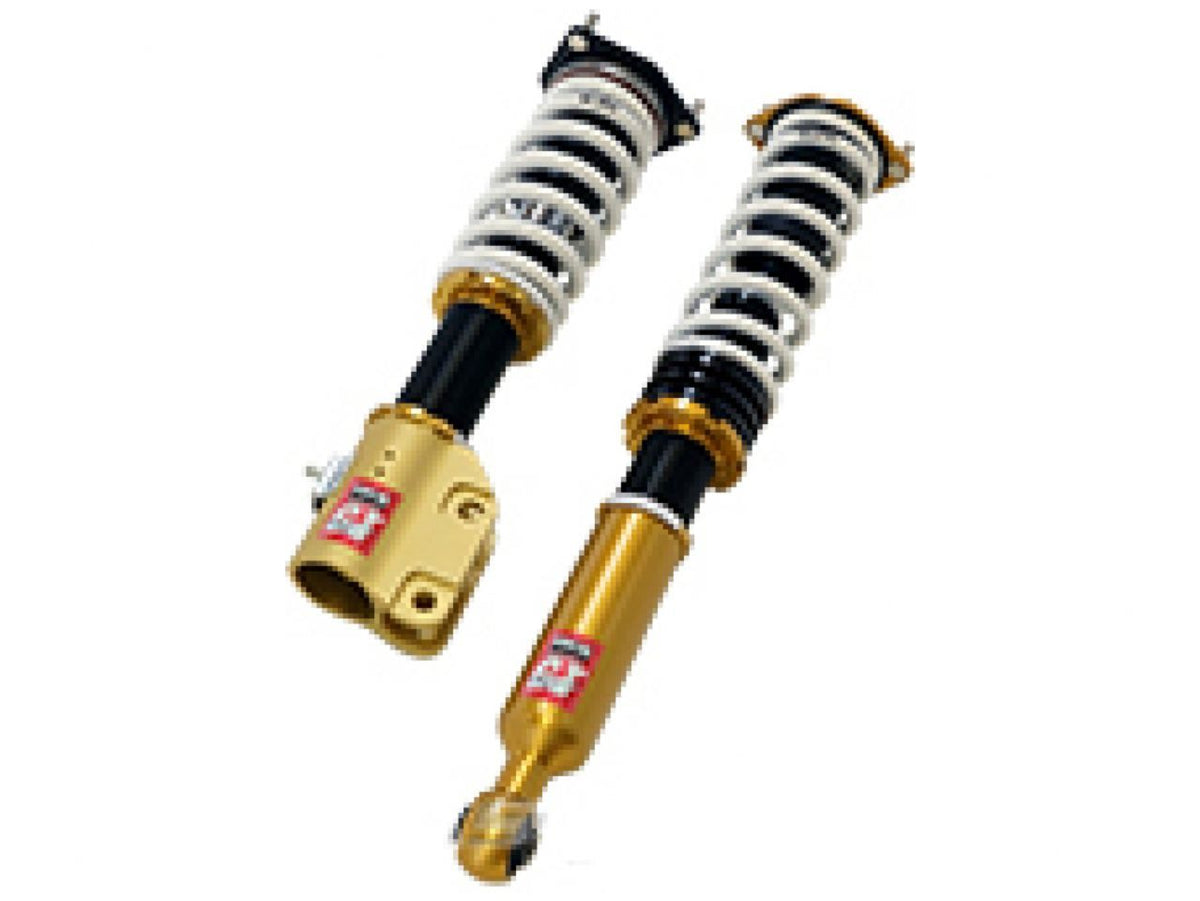

HKS Hipermax IV GT CZ4A Full Kit

HKS Hipermax IV GT CZ4A Full Kit

$1,590.00 USD
$1,590.00 USD $1,590.00 USD
Sale Out of stock
Shipping calculated at checkout.
  • Ships direct from the brand or supplier
  • Tracking emailed when it ships
  • Free fitment check before you order

HKS Hipermax IV GT CZ4A Full Kit. Coilovers combine the spring and damper in one height-adjustable unit, so you set the ride height instead of living with a fixed drop.

Quick facts

  • Brand: HKS
  • SKU: 0E0KF

Key details

  • 30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.
  • Specification: FRONT: REAR
  • Damping force adjustment: 30 steps / 30 steps
  • Base valve: - /
  • Upper mount: Rubber / Rubber
  • Inverted/Normal type: Inverted / Normal
  • Damper/Spring layout: Coilover / Coilover
  • Spring rate change at factory: Possible / Possible
  • Helper spring (Spring rate N/mm): - / ? ( 19.8 )
  • Spring rate N/mm(kgf/mm): 79 ( 8 ) / 49 ( 5 )
  • Free height (mm): 220 / 250
  • Spring type: Straight Barrel type / Straight
  • Default position of dial: 15 / 15
  • Default: Test / Drivable limit High * / Drivable limit Low * / Default / Test / Drivable limit High * / Drivable limit Low *
  • Length of case (mm): 302 / ? / 323 / 293 / 422 / ? / 442 / 406
  • Spring Set length(mm): 202 / ? / 202 / 220 / 287 / ? / 286 / 303
  • Length to ride hight adjuster (mm): 99 / ? / 120 / 72 / 57 / ? / 78 / 25
  • Lever ratio: 1.04 / 1.10

Notes

  • In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)
  • Recommended range to change spring rate N/mm(kgf/mm): ±20 ( 2 ) / ±20 ( 2 )

Tip: Set your final ride height, then get the car aligned.

View full details

Before you order: fitment and setup

Coilovers combine the spring and damper in one adjustable unit. That lets you choose your ride height and, on kits with damping adjustment, tune how firm it feels.

Fitment notes

  • Factory adaptive dampers: if your car has electronic or adaptive suspension, check whether the listing covers it or needs a cancellation kit.
  • Specs, lead time and warranty come from HKS and can change. The details above this guide are the latest we have.

Not sure it fits? Tell us exactly what you drive and we'll confirm fitment with the supplier first. It's free and saves a return.

Ask about fitment

Plan the whole job

  • An alignment. Any change in ride height changes camber and toe. Set your final height first, then align.
  • Camber and toe adjustment. Bigger drops often need adjustable arms or camber plates to align properly. See alignment and camber kits.
  • Wheel and tire clearance. Check clearance at full lock and full compression, especially with wider wheels. Our ride height and wheel fitment calculator shows how much drop and offset change you are planning.
  • The right spring rate. Compare the rates listed here with what our spring rate calculator suggests for your car's weight and use.

More for your car: All Coilovers

Questions

Will this fit my car?
Check the product title and details for the vehicles it is listed for. If you are not sure, contact us with your year, make, model and trim and we will confirm fitment with the supplier before you order.
Do I need an alignment after installing coilovers?
Yes. Changing ride height changes camber and toe. Set your final height, let the suspension settle, then get the car aligned.
How low can I go?
It depends on the adjustment range the brand lists, your wheels and tires, and how you use the car. Most cars that are driven hard work best with a modest drop that leaves enough suspension travel.
Where do specs and warranty details come from?
From HKS. We sell parts from several brands and suppliers, and each one sets its own specs, lead times and warranty terms. The product details above are the latest we have.
