16" Remote Reservoir Shocks
16" Remote Reservoir Shocks
Regular price
$2,100.00 USD
Regular price
Sale price
$2,100.00 USD
Quantity
Couldn't load pickup availability

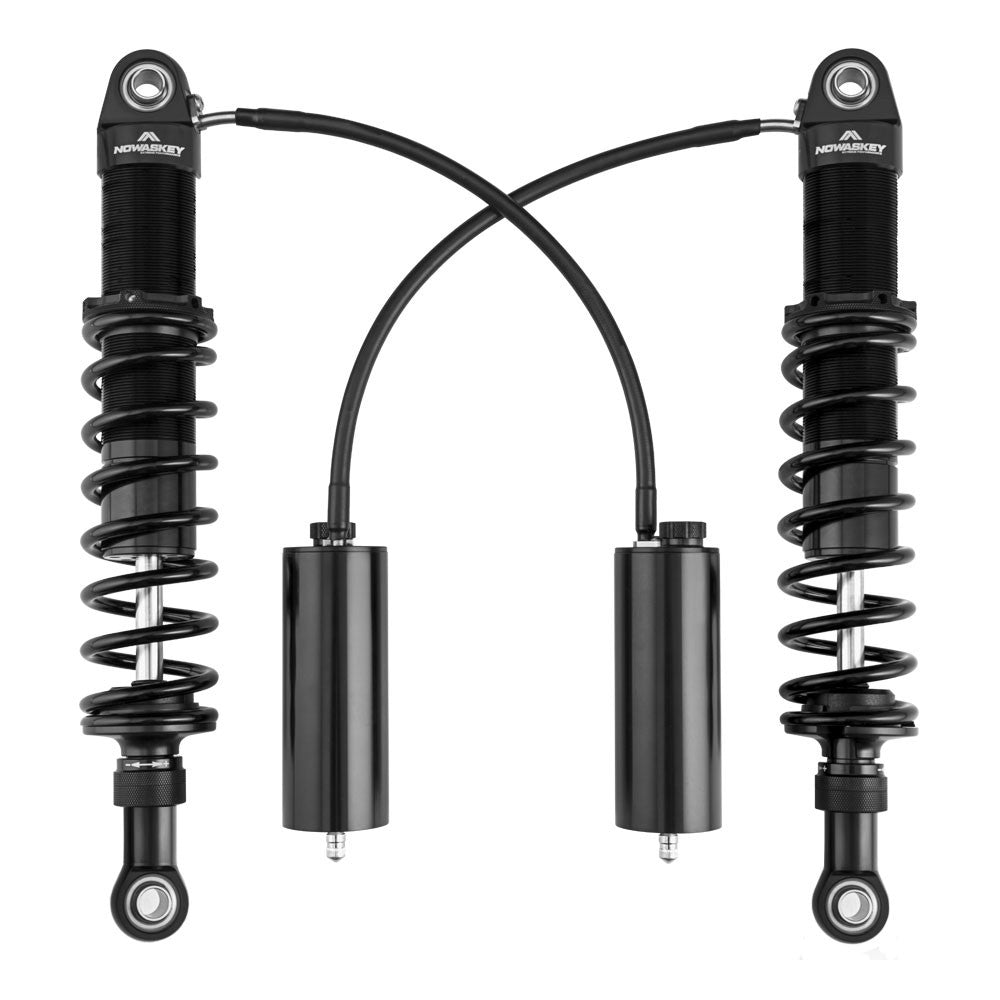

16" Remote Reservoir Harley Davidson Shocks
IMPORTANT NOTICE: Race Use Only. Not intended for street applications.
Compatible Years/Models: (1999 to Present) Harley-Davidson® Touring Models
Please contact us to ensure fitment and application via email Info@Nowaskey.com, or call us at 715-235-3659, and we will be happy to answer any questions you may have.
View and download the Installation & Tuning Guide
Designed for the Harley-Davidson® racing enthusiast who expects the ultimate in performance. Most importantly, experience exceptional handling, unrivaled tunability, and ride performance. Nowaskey® 16 inch Remote Reservoir Rear Shocks are built for aggressive riding in a racing environment only. On-the-fly tuning instantly adjusts for your racing style and set-up. Set the sag with the adjustable preload, then fine-tune the response with adjustable compression and rebound damping. Reservoir mounts are not included.
THE NOWASKEY DIFFERENCE
Our 16 inch bagger remote reservoir suspensions are designed and built to exacting specifications. All of our products are hand-assembled in the USA with American-made materials. Each shock is individually dyno-tuned and mated to its twin for consistent and exceptional performance.
Our 16 inch bagger remote reservoir suspensions are designed and built to exacting specifications. All of our products are hand-assembled in the USA with American-made materials. Each shock is individually dyno-tuned and mated to its twin for consistent and exceptional performance.
FEATURES

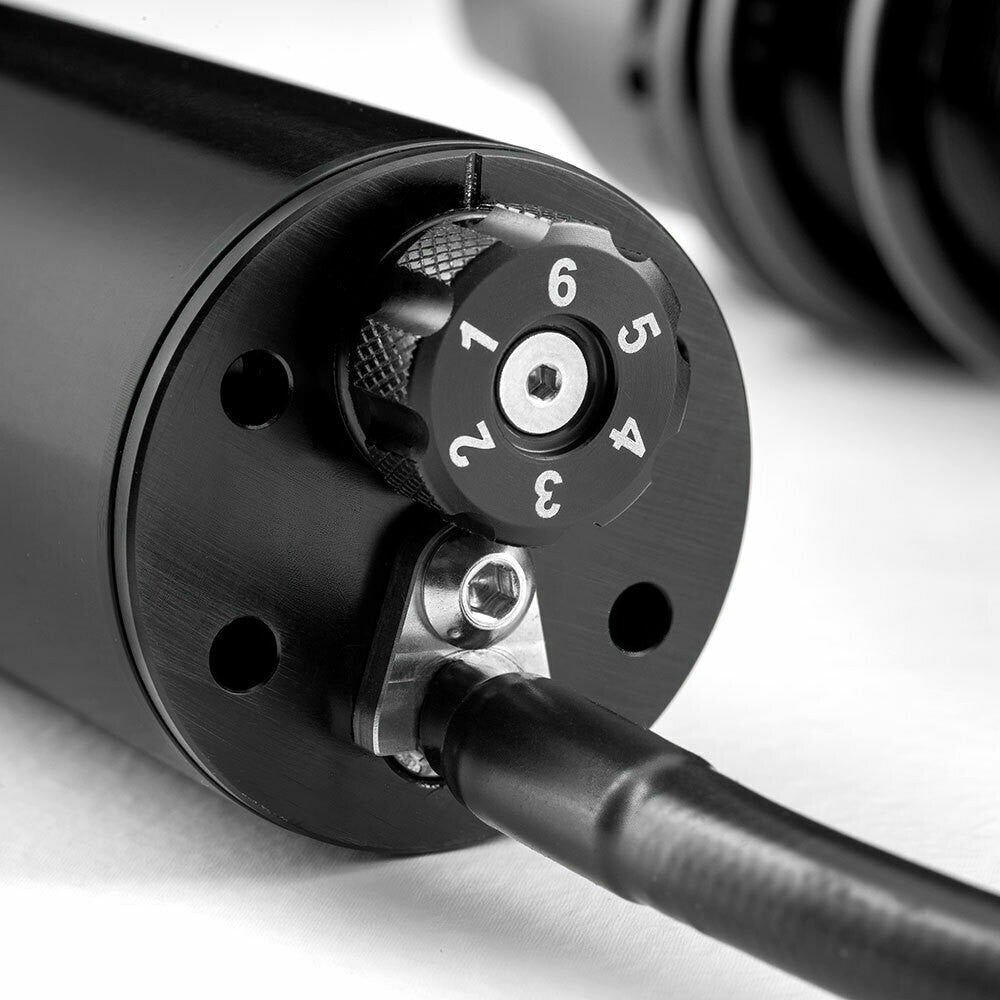

- Remote reservoir cylinder offers an independent 6-position compression adjustment with a larger nitrogen volume.
- Steel-braided Teflon® lines utilizing O-ring connection points for 360° of rotation.
- Proprietary tuned primary piston and valving to allow a more aggressive riding style.
- Proprietary tuned compression adjuster for a broader range of adjustment on the reservoir.
- 1" Teflon® lined wide misalignment spherical joints to compensate for misalignment on OEM frame mounts.
- Rebound adjustable eyelet O-ring sealed with 80 clicks for ultra-fine tuning.
- Custom-designed lightweight spring hardware and the ability to adjust the preload by hand.
- (4) spring rates available 115lbs/in, 130lbs/in, 140lbs/in, 150lbs/in (powder coated).
- Maxima 3.0 WT Full Synthetic Fluid.
- Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
- Progressive rate springs stiffen quickly for improved handling when elevating to high-performance riding.
- Exceptional shock length adjustment of +8/-2 mm.
- High-pressure nitrogen gas-charged design resists shock fading with low-friction shaft/seal head design for smooth performance.
- 16" Remote reservoir rear shocks are fully serviceable and rebuildable.
- No Warranty.
- Made in the USA.
